Passband7~9GHz, DC-5.3GHz≥40dBc, 10.7-13GHz≥40dBc
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Small size.
High cost-effectiveness.
Support for SMD.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 7 | ~ | 9 | GHz |
| Passband IL | / | / | 2.5 | dB | ||
| Rejection | DC-5.3 | GHz≥ | 40 | dBc | ||
| Rejection | 10.7-13 | GHz≥ | 40 | dBc | ||
| Passband VSWR | / | / | 1.7 |

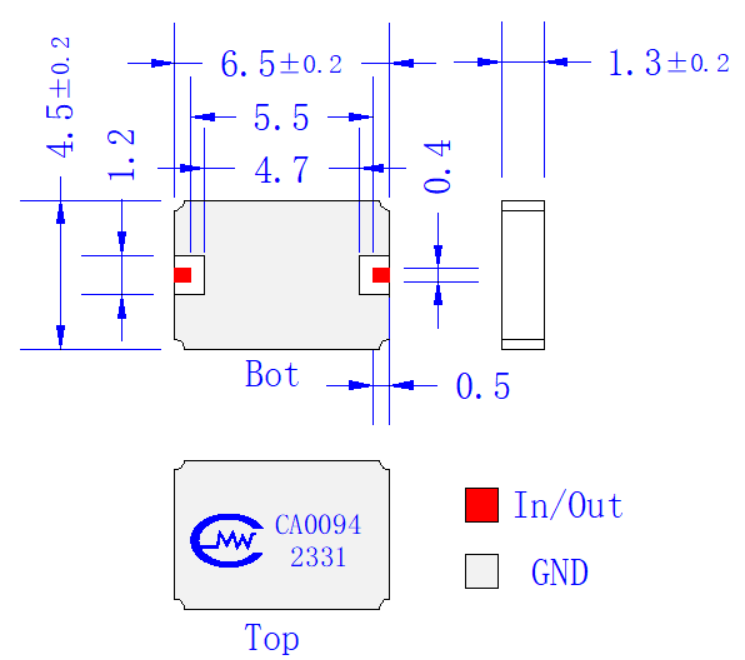

| Connector | SMD |
| Impedance | 50Ω |
| Power | 5W Design assurance |
| Work Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |
| 1 | Suggest using separate cavities |
| 2 | The product supports 220 ℃ reflow soldering. |

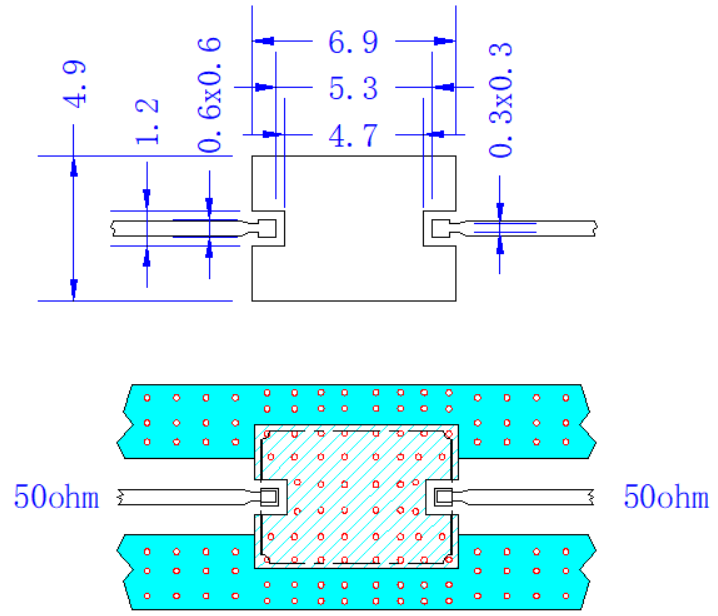

| 3 | The surface mounted filter should be well grounded. |
| 4 | Clean the surface of the product, do not soak the product in a cleaning solution. |
