Passband0.1~40GHz, Inductance240nH, Current200mA,
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

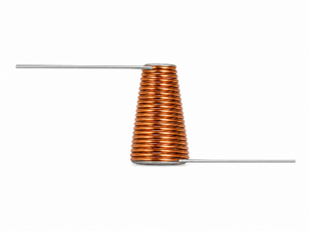

The hot-melt enameled wire is automatically wound and mainly serves as a feeding choke in broadband RF microwave circuits, suitable for micro assembly and soldering processes.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Passband | 0.1 | ~ | 40 | GHz |
| Inductance | 240 | nH | ||
| Inductance accuracy | ±20% | |||
| Current | 200 | mA | ||
| Wire diameter | 0.05 | mm | ||
| IL | 0.2 | 0.5 | dB@100M~20GHz | |
| IL | 0.5 | 1.5 | dB@100M~40GHz |
| Operation Temp. | -55~+125℃ Design assurance |
| Temperature 20-25 ℃, humidity 40-60% | |
| Quality Grade | Industrial grade |

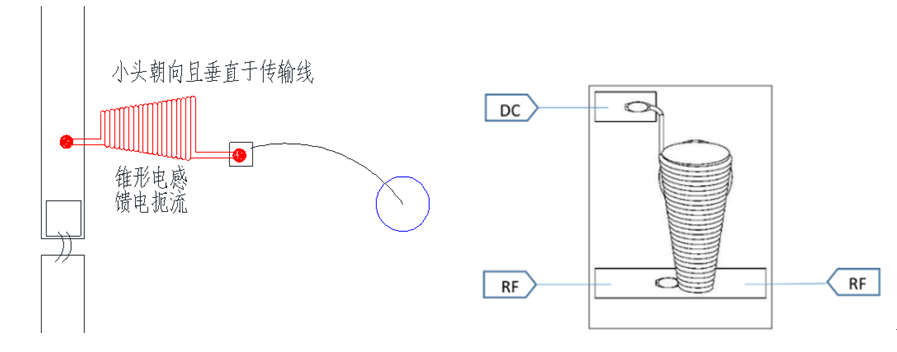

During assembly, the cone tip (small head) should face and be perpendicular to the RF signal transmission line. The lead wires at the transmission line end should be as short as possible, and the cone inductor must be fixed with adhesive.
| A | B | C | L1 | L2 |
|---|---|---|---|---|
| 0.05 | 0.35 | 0.78 | 1.25 | 5 |
