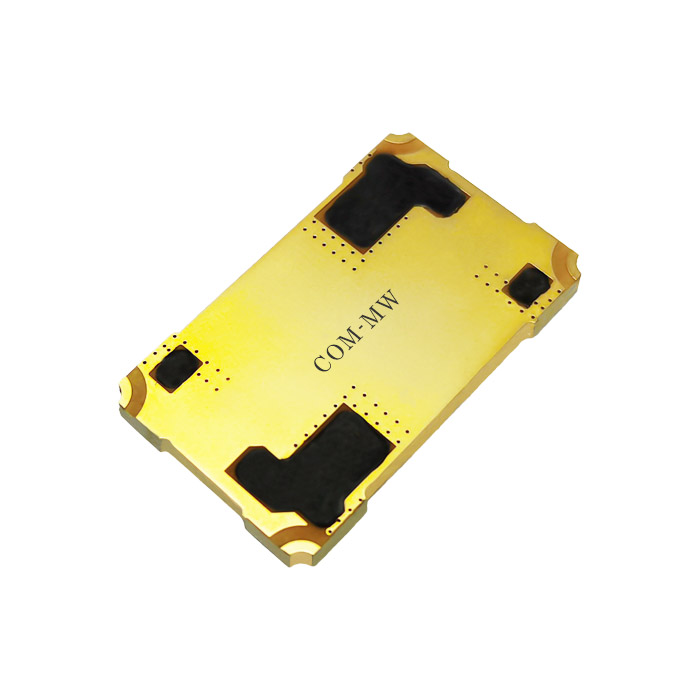

Broadband, high-power.

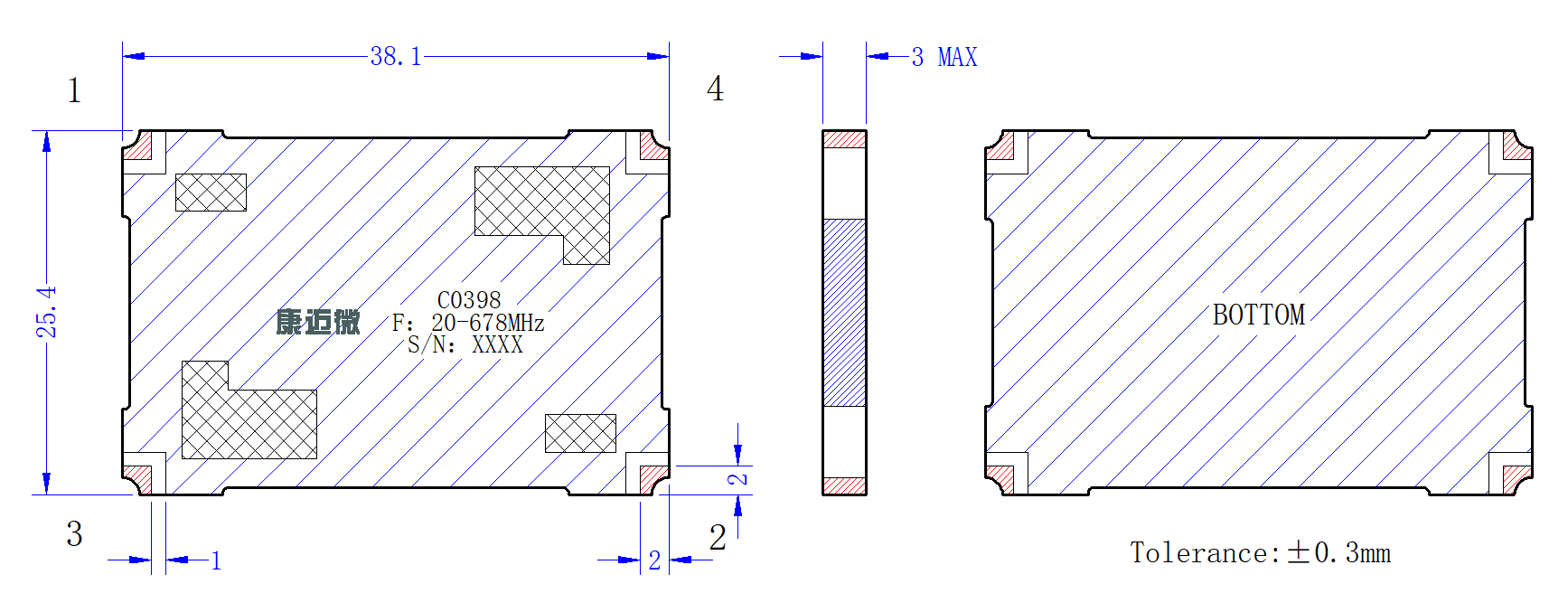

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 20 | ~ | 678 | MHz |
| IL | 0.15 | 0.3 | dB | |
| Coupling | 49 | 50 | 51 | dB |
| Directivity | 20 | dB | ||
| Main line VSWR | 1.2 | |||
| Coupled line VSWR | 1.1 |
| Connector | SMD |
|---|---|
| Impedance | 50Ω |
| Power Capacity | 300W |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | / |
| Input port | 1&2 |
|---|---|
| Output port | 2&1 |
| Coupling port | 3&4 |
| Isolated Port | 4&3 |

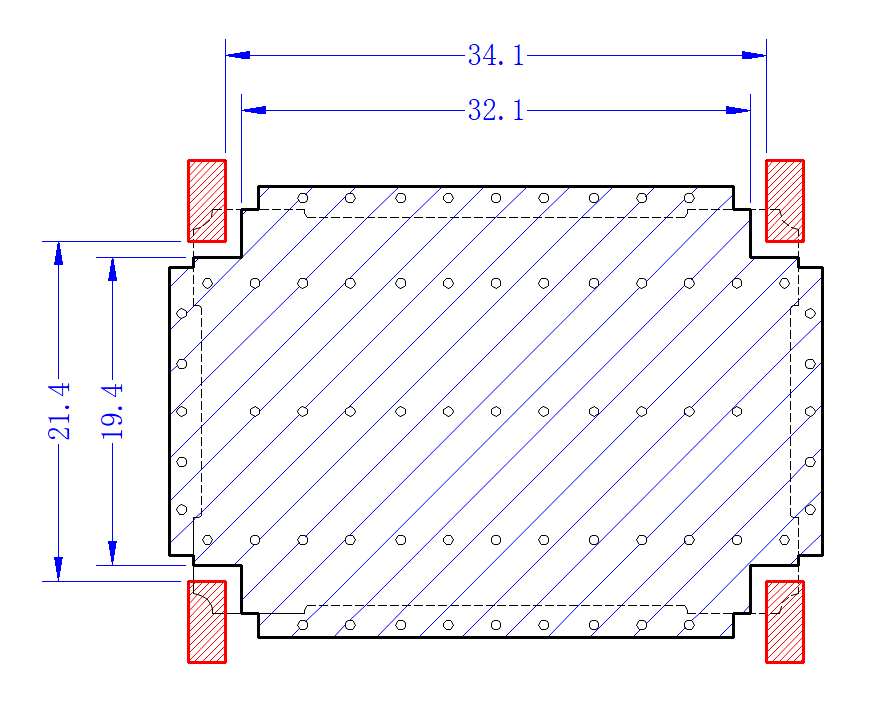

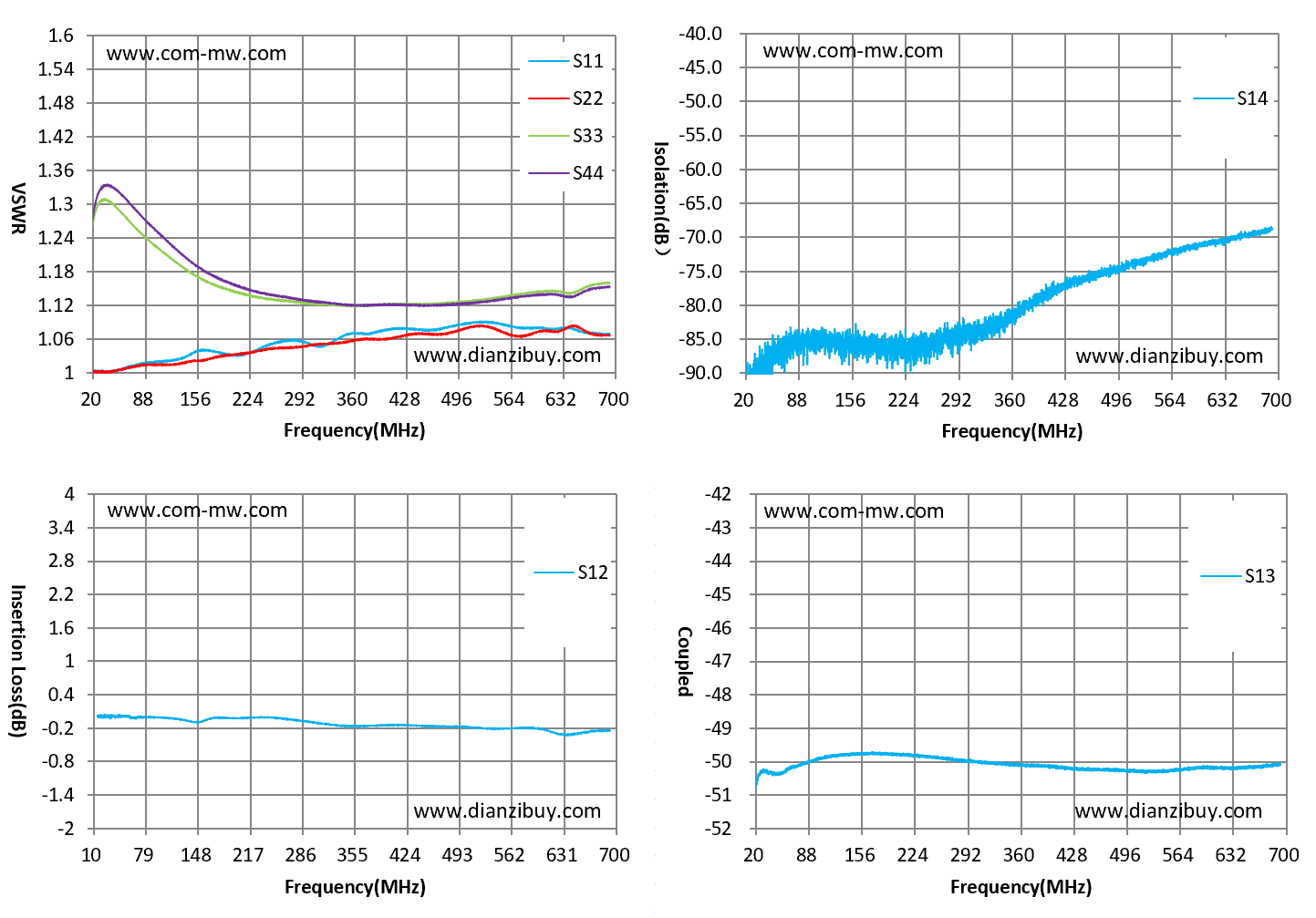

| F(MHz) | S12 IL | S14 ISO | S11 VSWR | S33 VSWR | S13 C |
|---|---|---|---|---|---|
| 20 | -0.01 | -95 | 1.01 | 1.28 | -50.1 |
| 100 | -0.02 | -82.6 | 1.02 | 1.22 | -49.9 |
| 150 | -0.04 | -86.4 | 1.03 | 1.18 | -49.7 |
| 240 | -0.05 | -85.4 | 1.04 | 1.13 | -49.8 |
| 320 | -0.13 | -84.9 | 1.05 | 1.12 | -50.1 |
| 420 | -0.14 | -77.2 | 1.07 | 1.12 | -50.2 |
| 520 | -0.19 | -74.2 | 1.08 | 1.13 | -50.3 |
| 600 | -0.2 | -71.3 | 1.07 | 1.14 | -50.1 |
| 680 | -0.23 | -69.1 | 1.07 | 1.16 | -50.1 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | The product supports 220 ℃ reflow soldering. |
