5~2850MHz, Coupling 17dB, SMD, 1W, Industrial grade, Substitutes TCD-17-282X+
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
| Frequency | 5 | ~ | 2850 | MHz |
| 2.4 | dB | |||
| Coupling | 17 | dB | ||
| Directivity | 6 | dB | ||
| Main line VSWR | 1.4 | |||
| Coupled line VSWR | 1.4 |
| Connector | SMD |
| Power Capacity | 1W Design assurance |
| Operation Temp. | -45~+85℃ |
| Storage Temp. | -55~+100℃ |
| Quality Grade | Industrial grade |
| Other | Substitutes TCD-17-282X+ |

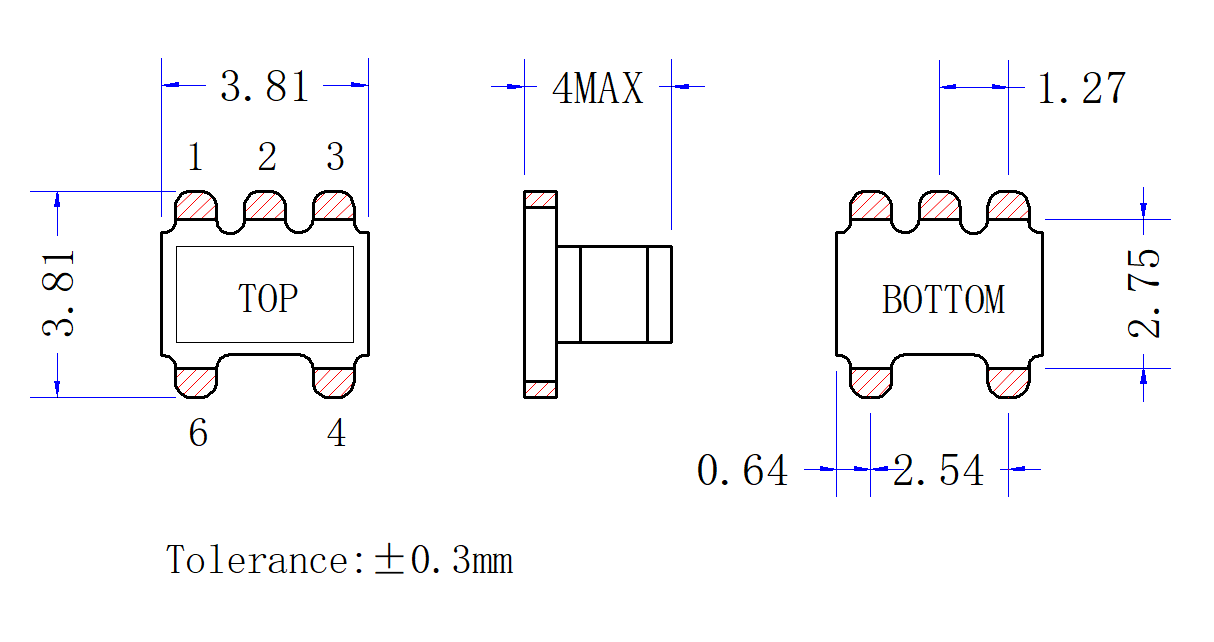

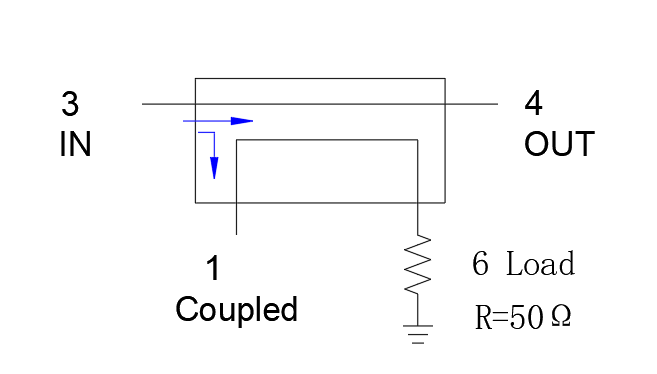

| Input port | 3 | -- |
| Output port | 4 | --- |
| Coupling port | 1 | --- |
| Isolated Port | 6 | --- |
| GND | 2 | --- |

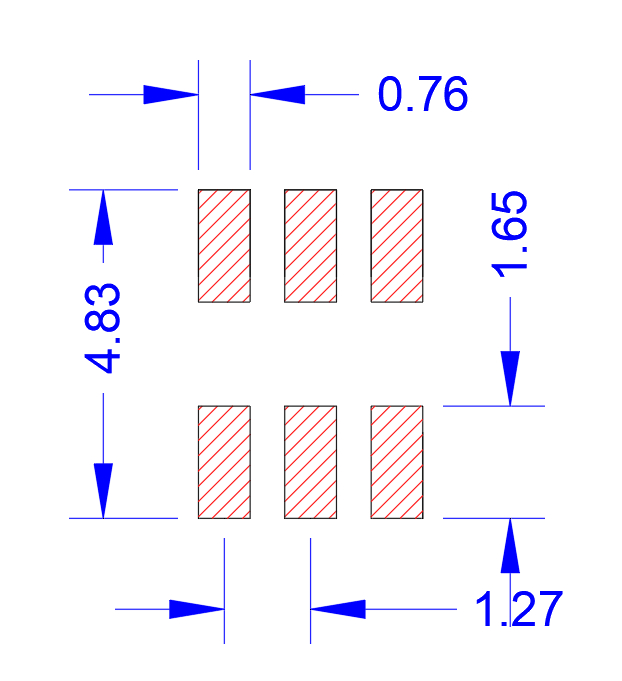

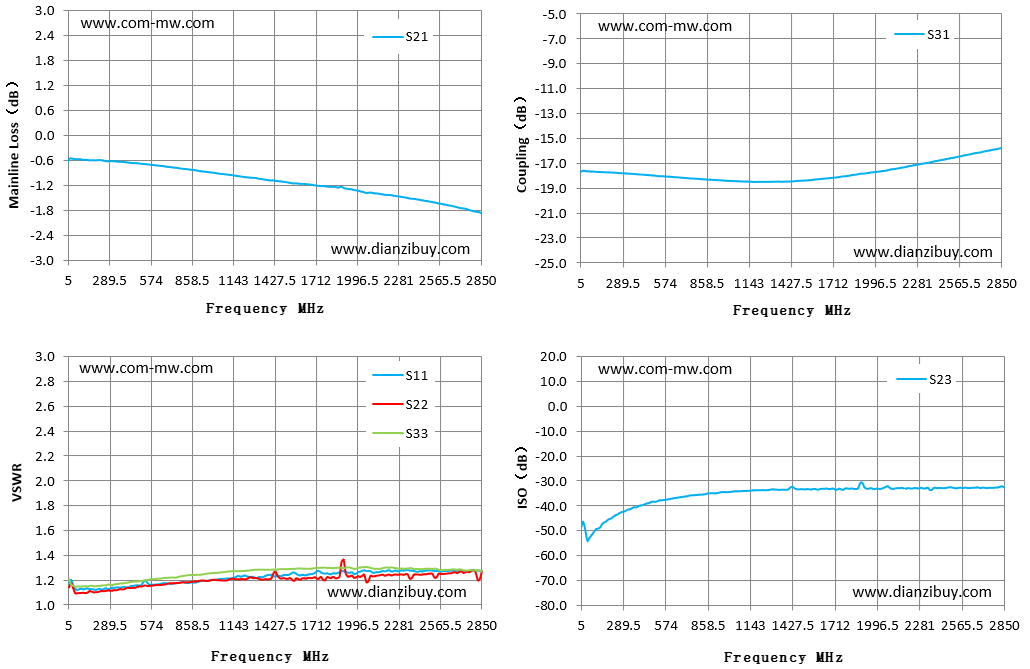

| Frequency MHz | S21 MLdB | S11 SWR | S22 SWR | S33 SWR | S31 CPLdB | S23 ISO dB |
| 5.00 | -0.62 | 1.18 | 1.14 | 1.21 | -17.69 | -48.70 |
| 208.00 | -0.59 | 1.13 | 1.10 | 1.15 | -17.74 | -45.03 |
| 411.00 | -0.64 | 1.14 | 1.14 | 1.18 | -17.90 | -39.69 |
| 615.00 | -0.71 | 1.17 | 1.16 | 1.21 | -18.08 | -37.09 |
| 818.00 | -0.80 | 1.18 | 1.18 | 1.24 | -18.27 | -35.34 |
| 1021.00 | -0.89 | 1.20 | 1.20 | 1.26 | -18.41 | -34.22 |
| 1224.00 | -0.99 | 1.24 | 1.21 | 1.28 | -18.48 | -33.57 |
| 1428.00 | -1.08 | 1.23 | 1.27 | 1.29 | -18.45 | -32.18 |
| 1631.00 | -1.16 | 1.24 | 1.21 | 1.29 | -18.25 | -32.97 |
| 1834.00 | -1.23 | 1.26 | 1.23 | 1.30 | -17.98 | -32.84 |
| 2037.00 | -1.34 | 1.28 | 1.24 | 1.31 | -17.66 | -32.97 |
| 2240.00 | -1.43 | 1.27 | 1.24 | 1.30 | -17.21 | -32.84 |
| 2444.00 | -1.55 | 1.27 | 1.25 | 1.29 | -16.76 | -32.76 |
| 2647.00 | -1.68 | 1.28 | 1.25 | 1.29 | -16.30 | -32.58 |
| 2850.00 | -1.85 | 1.27 | 1.28 | 1.27 | -15.80 | -32.51 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 260 ℃ reflow soldering. |
