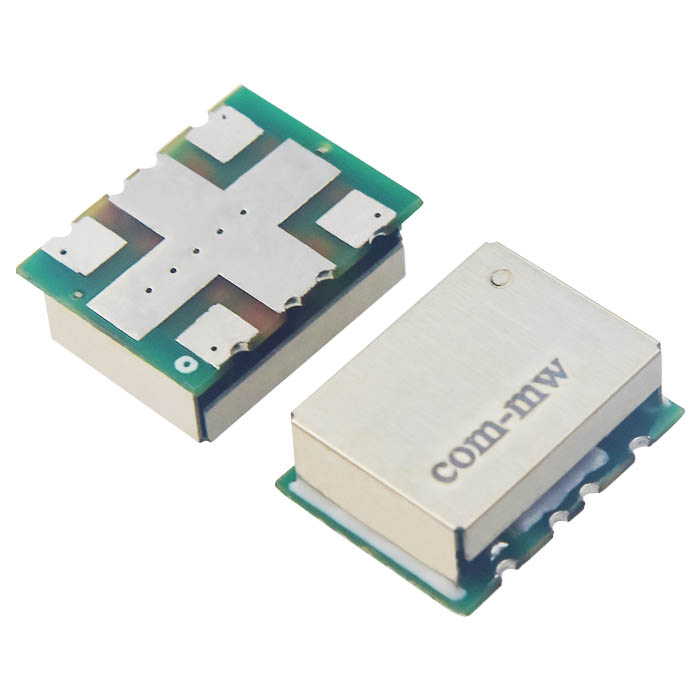

1.5~60MHz, Coupling20dB, SMD, 40W, Industrial grade, Replace SYDC-20-61VHP+
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low loss, high power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1.5 | ~ | 60 | MHz |
| IL | 0.1 | 0.2 | dB | |
| Coupling | 20.5 | 20 | 21.6 | dB |
| Directivity | 16 | 22 | dB | |
| Main line VSWR | 1.15 | 1.25 | ||
| Coupled line VSWR | 1.2 | 1.3 |
| Connector | SMD |
| Power | 40W |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Replace SYDC-20-61VHP+ |

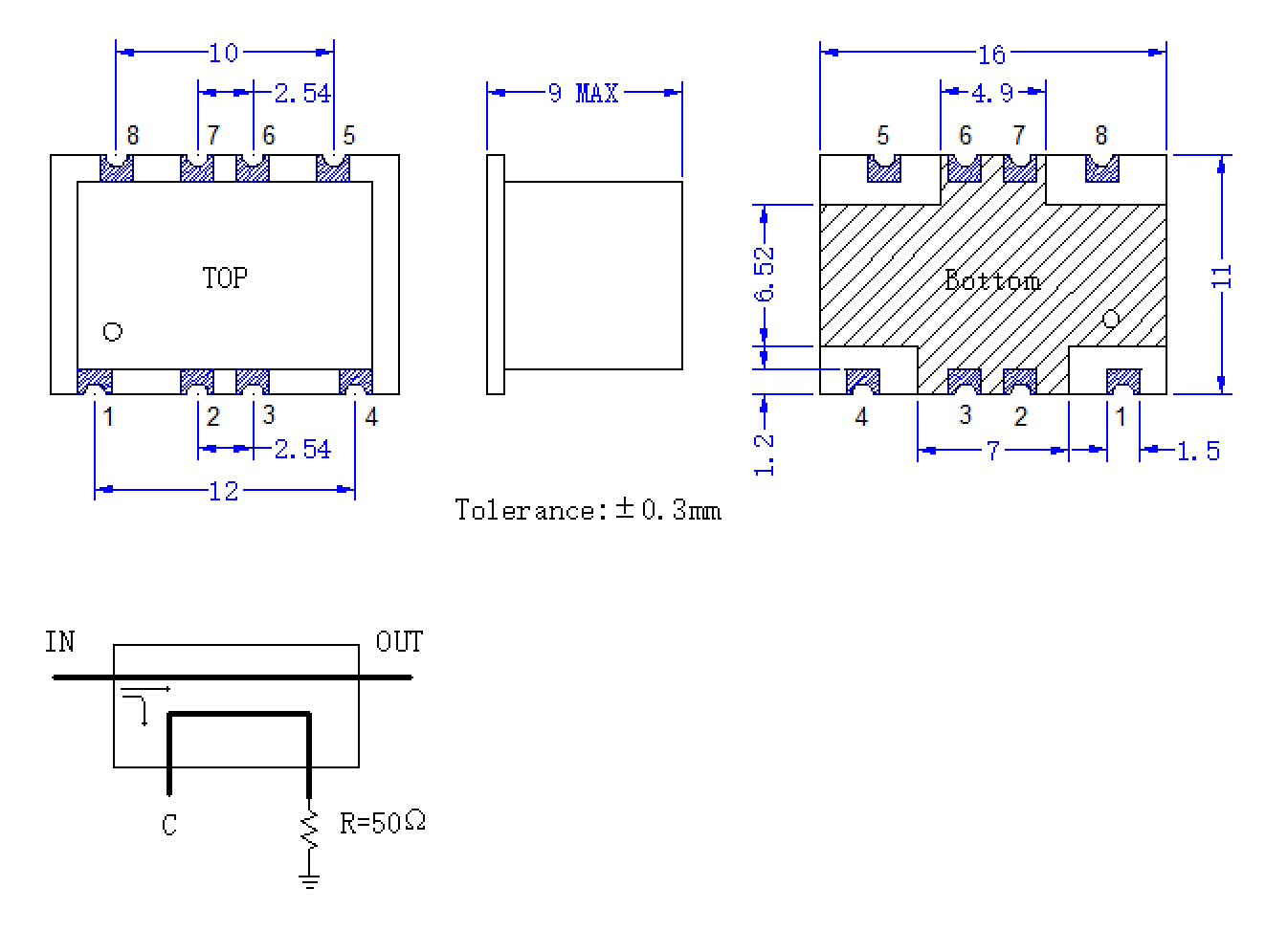

| Input port | 1 |
| Output port | 8 |
| Coupling port | 4 |
| Isolated Port | 5 (connected to a 50 ohm load) |
| GND | 2，3，6，7 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | The product supports 220 ℃ reflow soldering. |
