10~1500MHz, Coupling7dB, SMD, 2W, Substitutes DBTC-7-152+
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, small volume.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 10 | ~ | 1500 | MHz |
| IL | 2.2 | 3.2 | dB | |
| Coupling | 6.5 | 7 | 7.5 | dB |
| Directivity | 9 | 18 | dB | |
| Main line VSWR | 1.4 | 1.9 | ||
| Coupled line VSWR | 1.4 | 1.9 |

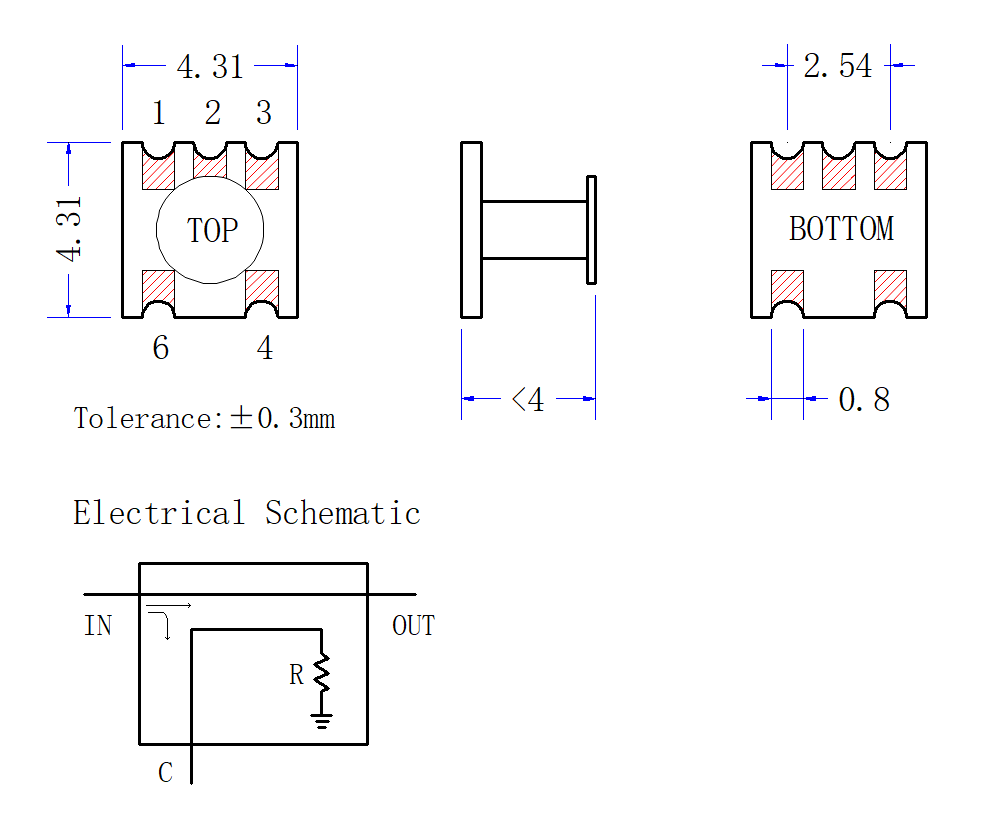

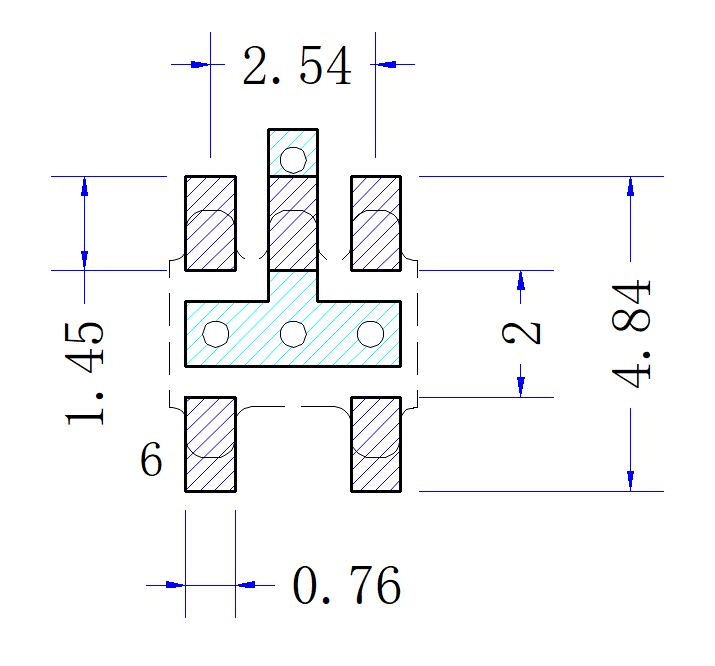

| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 2W |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Substitutes DBTC-7-152+ |
| Input port | 3 |
| Output port | 4 |
| Coupling port | 1 |
| GND | 2 |

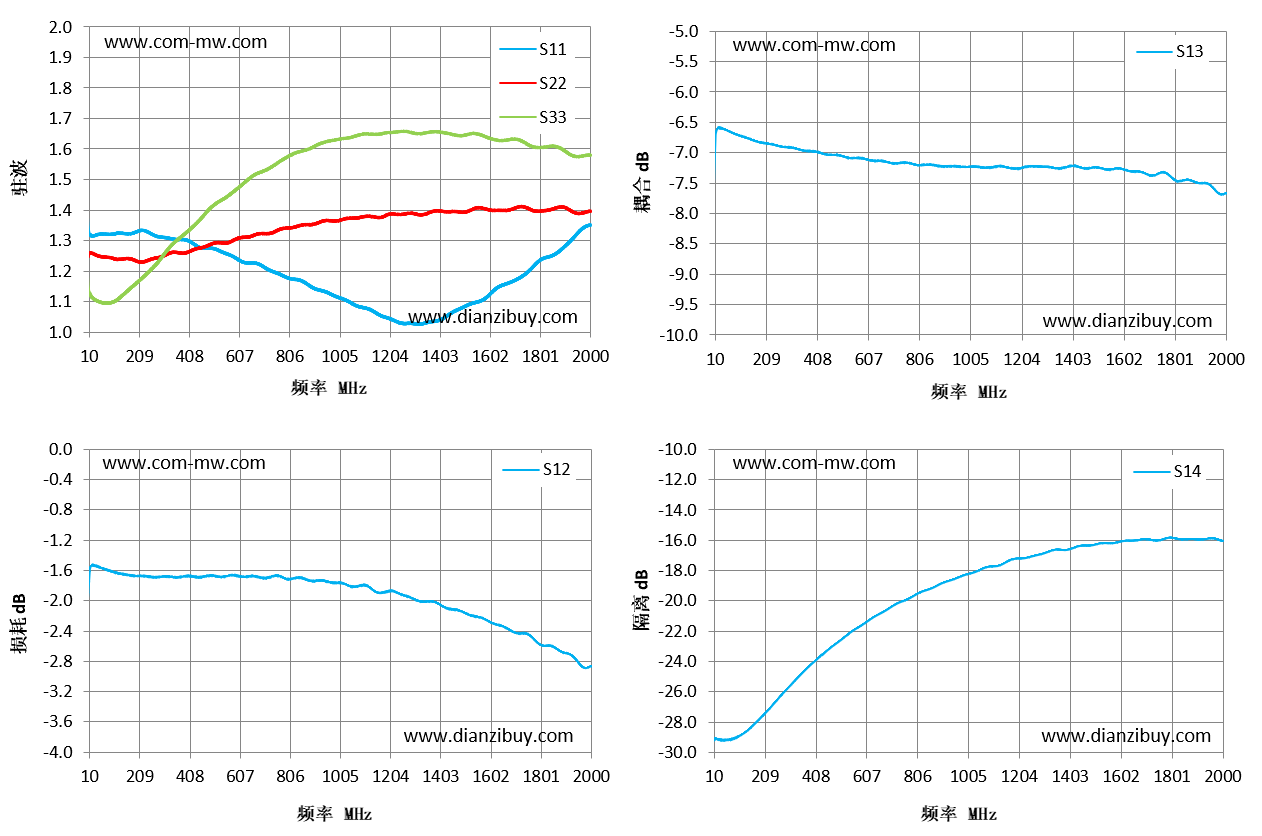

| Frequency(MHz) | S11 VSWR | S33 VSWR | S12 IL dB | S13 coupling | S14 ISO dB |
|---|---|---|---|---|---|
| 10 | 1.33 | 1.13 | -1.61 | -6.78 | -29.14 |
| 152 | 1.32 | 1.13 | -1.66 | -6.79 | -28.39 |
| 294 | 1.31 | 1.24 | -1.69 | -6.91 | -25.84 |
| 436 | 1.28 | 1.36 | -1.69 | -7.03 | -23.53 |
| 579 | 1.25 | 1.46 | -1.66 | -7.09 | -21.7 |
| 721 | 1.2 | 1.54 | -1.69 | -7.18 | -20.22 |
| 863 | 1.16 | 1.59 | -1.71 | -7.21 | -19.16 |
| 1005 | 1.11 | 1.63 | -1.77 | -7.23 | -18.23 |
| 1147 | 1.06 | 1.65 | -1.89 | -7.24 | -17.5 |
| 1289 | 1.03 | 1.65 | -1.97 | -7.23 | -16.92 |
| 1431 | 1.05 | 1.65 | -2.1 | -7.24 | -16.42 |
| 1574 | 1.11 | 1.64 | -2.24 | -7.26 | -16.19 |
| 1716 | 1.18 | 1.63 | -2.43 | -7.38 | -15.97 |
| 1858 | 1.25 | 1.61 | -2.62 | -7.45 | -15.94 |
| 2000 | 1.35 | 1.58 | -2.86 | -7.67 | -16.05 |
| 1 | Short term soaking and cleaning, please dry in a timely manner. |
| 2 | The product supports 260 ℃ reflow soldering. |
