Downloads

↓ Datasheet ↓ S-Parameters 65 KB ↓ PCB Layout 65 KB

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	100	~	1200	MHz
IL		0.5	1.1	dB
Coupling	19.2	20	20.8	dB
Directivity	13	26		dB
Main line VSWR		1.20
Coupled line VSWR		1.2

Other parameters

Connector	SMD
Impedance	50Ω
Power Capacity	1W
Operation Temp.	-55~+85℃ Design assurance
Storage Temp.	-55~+100℃ Design assurance
Quality Grade	Industrial grade
Other	/

Port Definition

Input port	1
Output port	6
Coupling port	3
Load port	4
GND	2

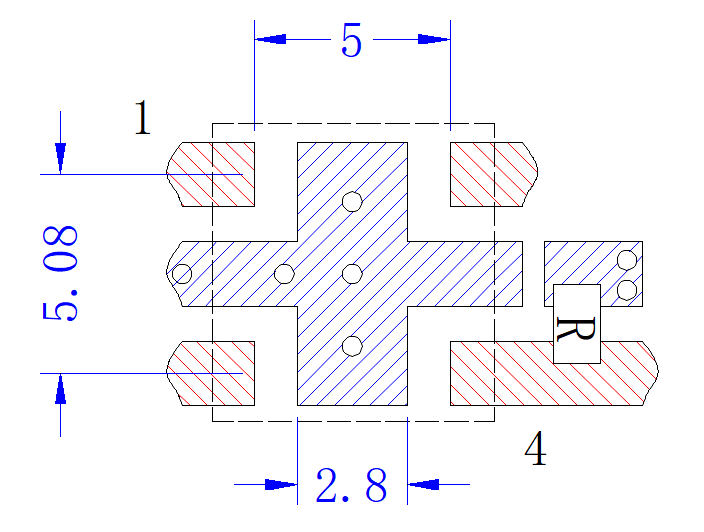

Suggested PCB Layout

Typical test data

Frequency(GHz)	S11 VSWR	S22 VSWR	S33 VSWR	S12 IL dB	S23 Coupling	S31 ISO
0.05	1.06	1.07	1.08	-0.84	-19.99	-51.65
0.14	1.05	1.03	1.05	-0.32	-20.08	-50.82
0.23	1.03	1.02	1.03	-0.17	-19.95	-48.91
0.32	1.03	1.02	1.03	-0.28	-20	-47.23
0.41	1.03	1.01	1.03	-0.27	-19.92	-45.45
0.5	1.02	1.01	1.03	-0.3	-19.88	-43.65
0.59	1.01	1.01	1.03	-0.34	-19.84	-41.88
0.68	1	1.01	1.03	-0.39	-19.81	-40.27
0.76	1.01	1.01	1.04	-0.39	-19.74	-38.97
0.85	1.03	1.02	1.04	-0.44	-19.7	-37.63
0.94	1.04	1.02	1.04	-0.46	-19.62	-36.35
1.03	1.06	1.03	1.04	-0.49	-19.53	-35.16
1.12	1.09	1.04	1.04	-0.55	-19.49	-34.07
1.21	1.1	1.06	1.04	-0.61	-19.43	-33.01

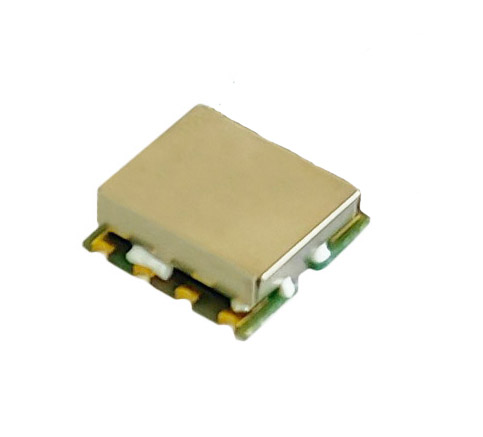

Reference picture

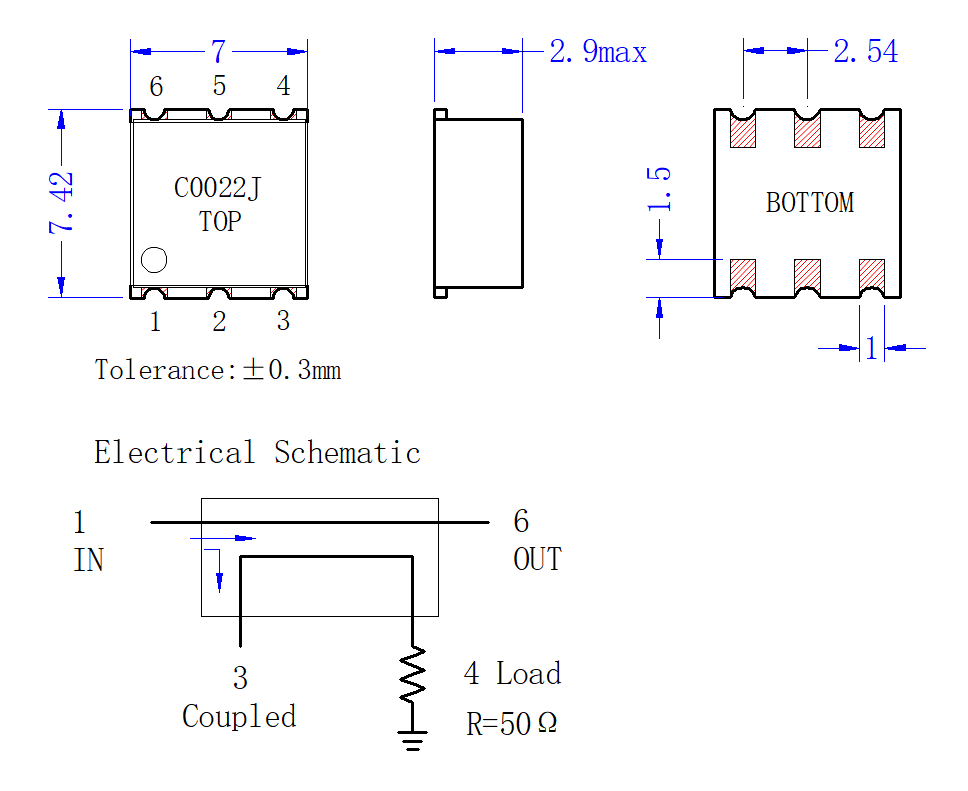

Configuration(mm)

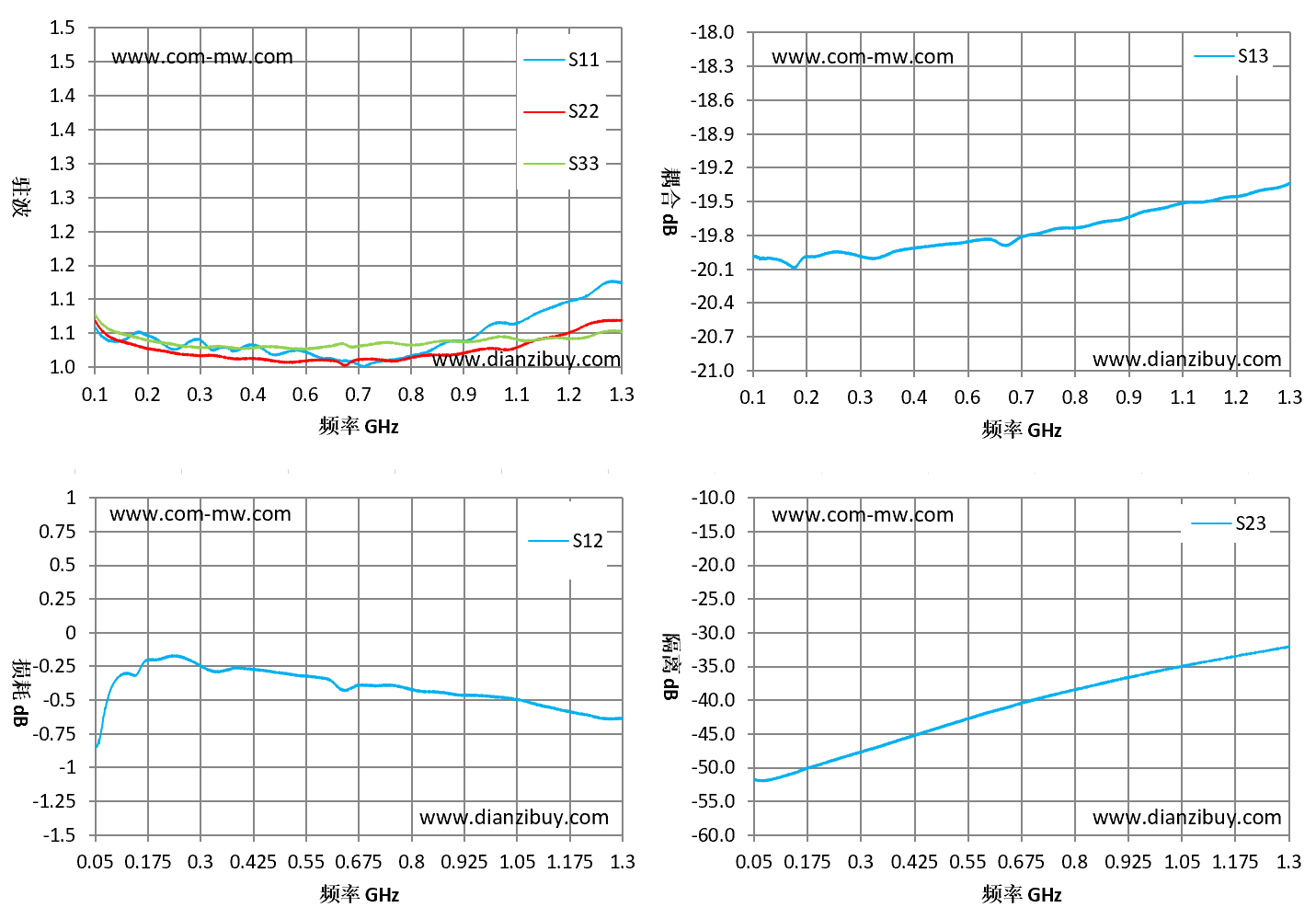

Typical test curve

Note

1	Clean the surface of the product, do not soak the product in cleaning solution for cleaning.
2	The product supports 220 ℃ reflow soldering.

Coupler C0022
