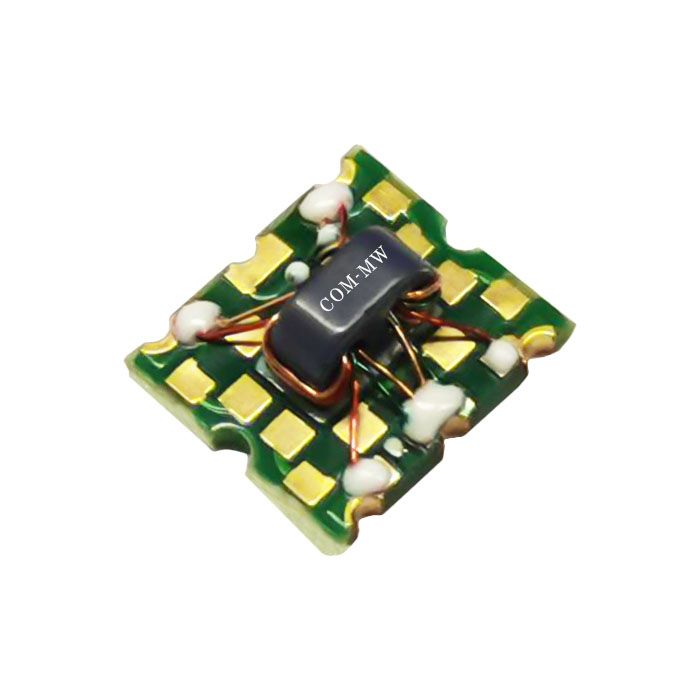

5~1000MHz, Coupling10dB, SMD, 1W, Industrial grade, /
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 5 | ~ | 1000 | MHz |
| IL | 1.1 | 1.5 | dB | |
| Coupling | 9.5 | 10 | 10.5 | dB |
| Directivity | 13 | 17 | dB | |
| Main line VSWR | 1.2 | 1.3 | ||
| Coupled line VSWR | 1.2 | 1.3 |
| Connector | SMD |
|---|---|
| Impedance | 50Ω |
| Power | 1W |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | / |

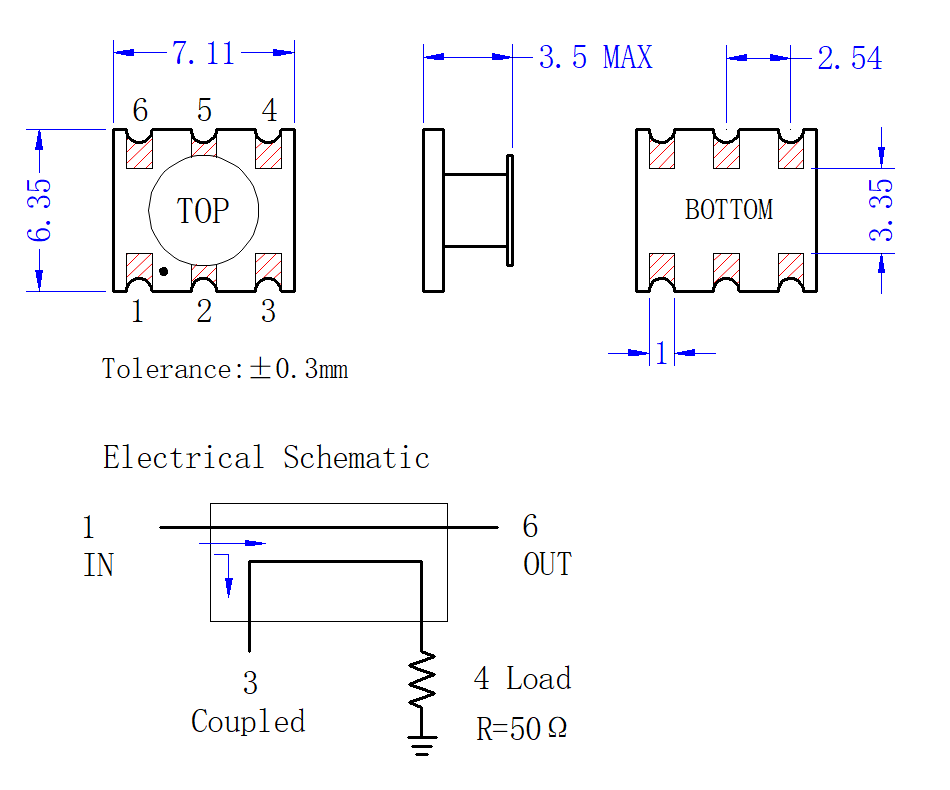

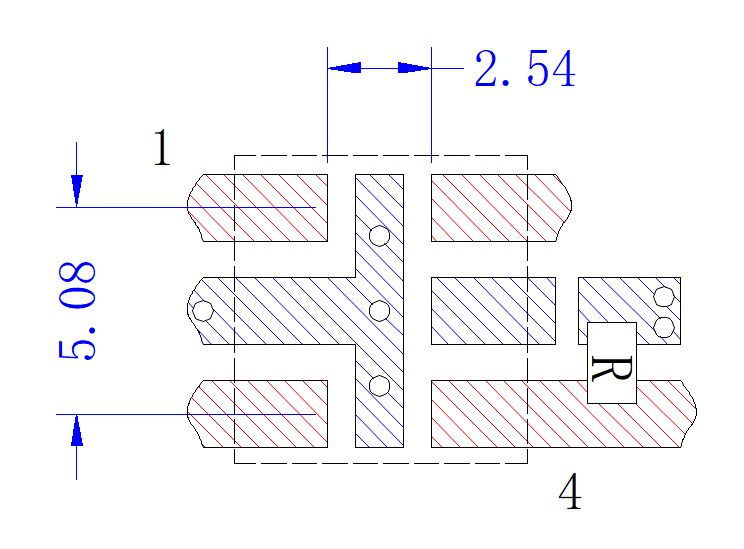

| Input port | 1 |
|---|---|
| Output port | 6 |
| Coupling port | 3 |
| Isolated Port | 4 (external 50 Ω load) |

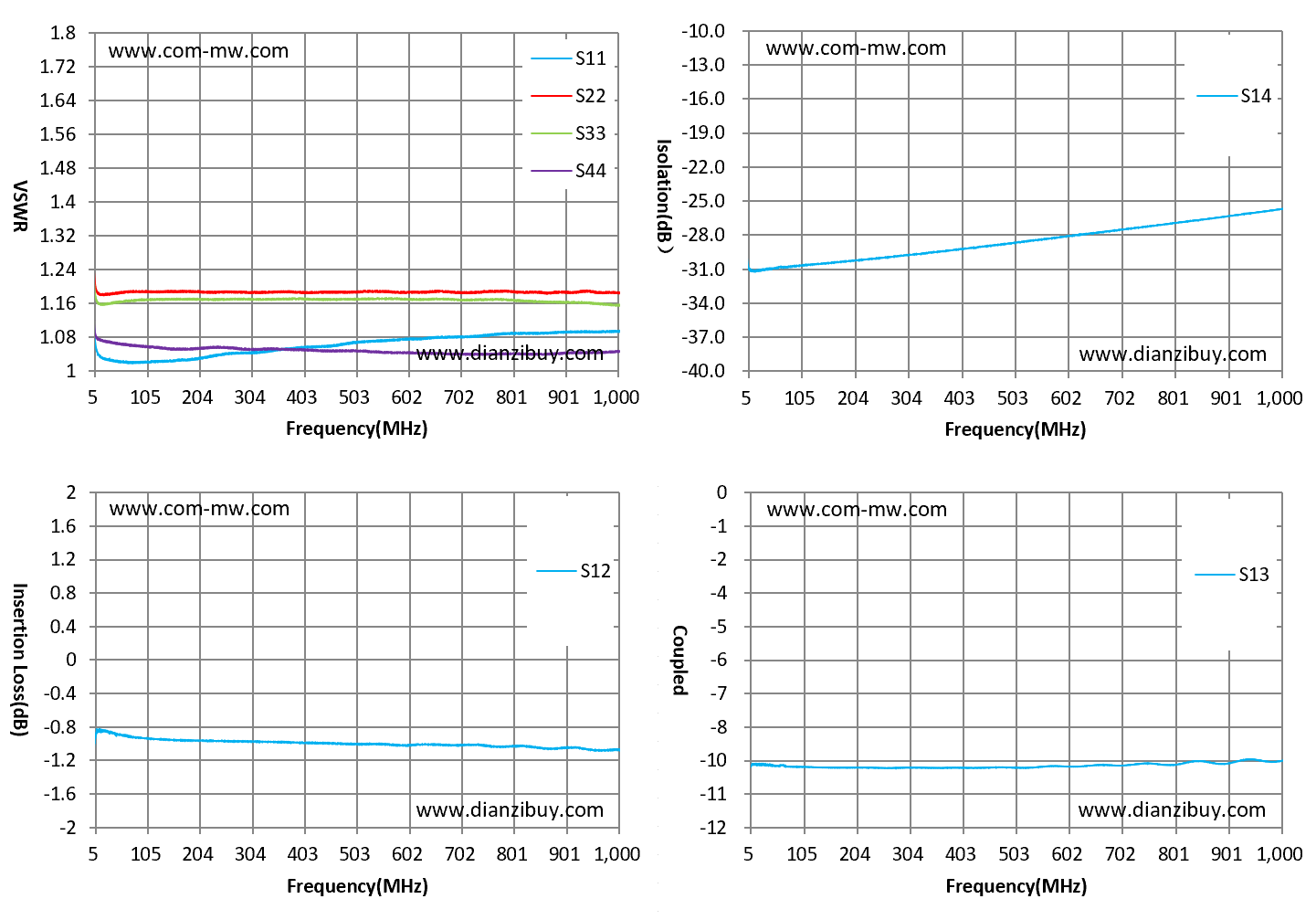

| F(MHz) | S12 IL | S23 ISO | S11 VSWR | S33 VSWR | S13 C |
|---|---|---|---|---|---|
| 5 | -0.84 | -31.1 | 1.04 | 1.16 | -9.37 |
| 100 | -0.94 | -30.7 | 1.02 | 1.11 | -9.81 |
| 200 | -0.97 | -30.1 | 1.03 | 1.17 | -9.83 |
| 400 | -0.99 | -29.3 | 1.05 | 1.17 | -9.93 |
| 600 | -1.01 | -28.1 | 1.07 | 1.17 | -9.78 |
| 700 | -1.02 | -27.5 | 1.07 | 1.16 | -9.76 |
| 800 | -1.03 | -27.1 | 1.09 | 1.17 | -9.74 |
| 900 | -1.04 | -26.3 | 1.09 | 1.16 | -9.66 |
| 1000 | -1.07 | -25.6 | 1.09 | 1.16 | -9.57 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | The product supports 260 ℃ reflow soldering. |
