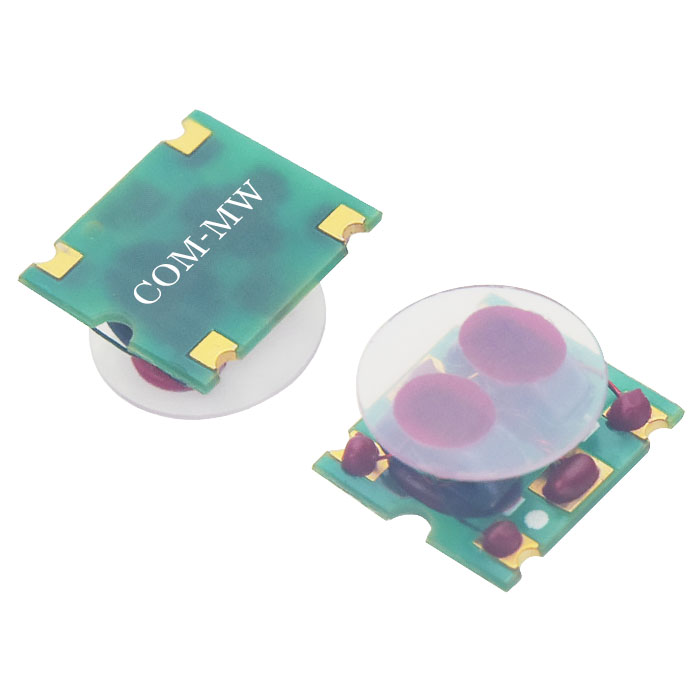

30~1350MHz, 2W, 2way, 180°, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

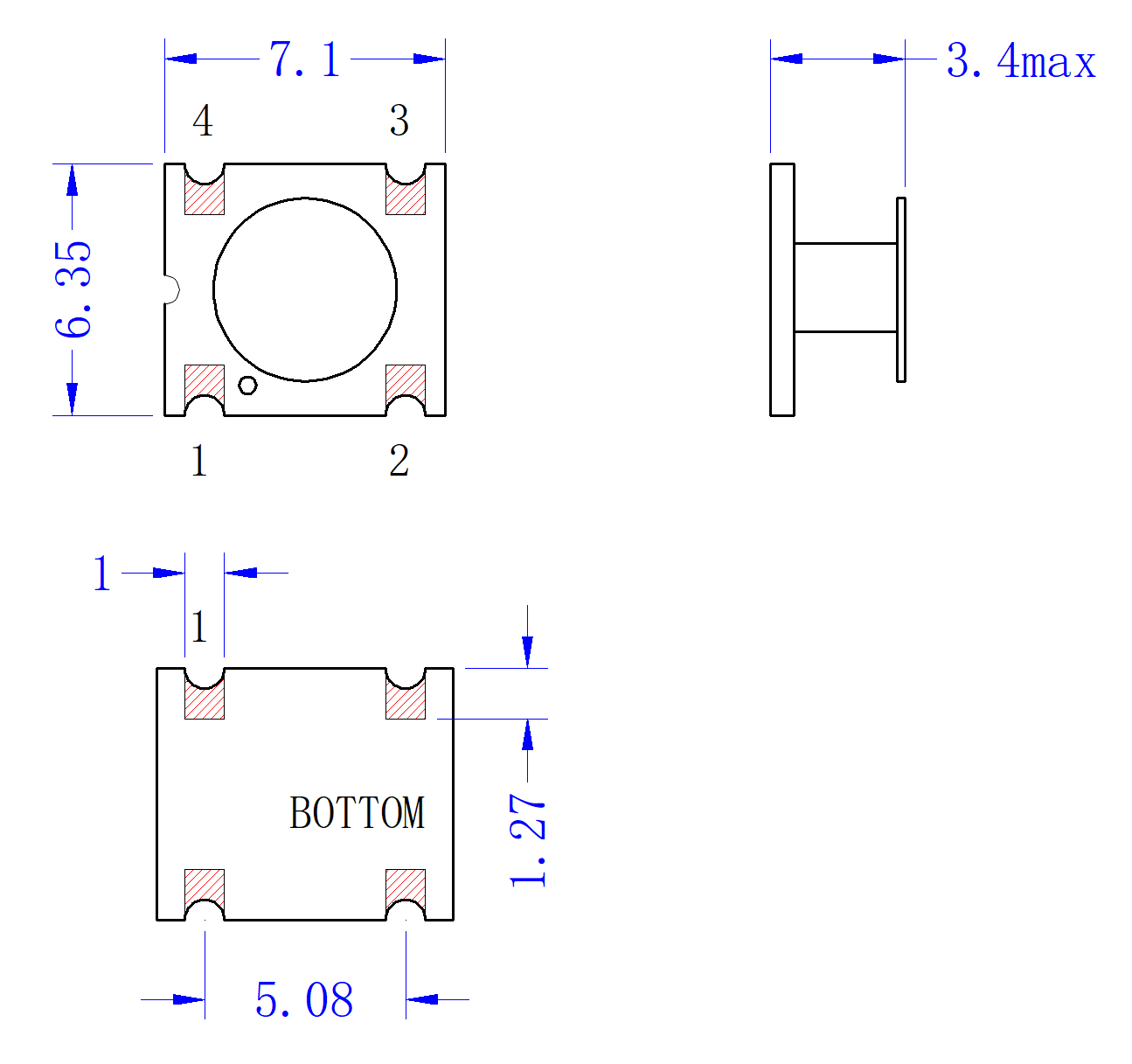

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 1350 | MHz |
| IL | 5 | dB | ||
| Isolation | 12 | dB | ||
| Input VSWR | 1.8 | 2 | ||
| Output VSWR | 1.8 | 2 | ||
| Amplitude balance | 1 | dB | ||
| Phase balance | 10 | ° |
| Power | 2W Design assurance |
| way | 2-way |
| Phase | 180° |
| Impedance | 50Ω |
| Connector | SMD |
| Work Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Common port | 1 |
| Dispatch Port | 2（0°） |
| Dispatch Port | 3（-180°） |
| GND | 4 |

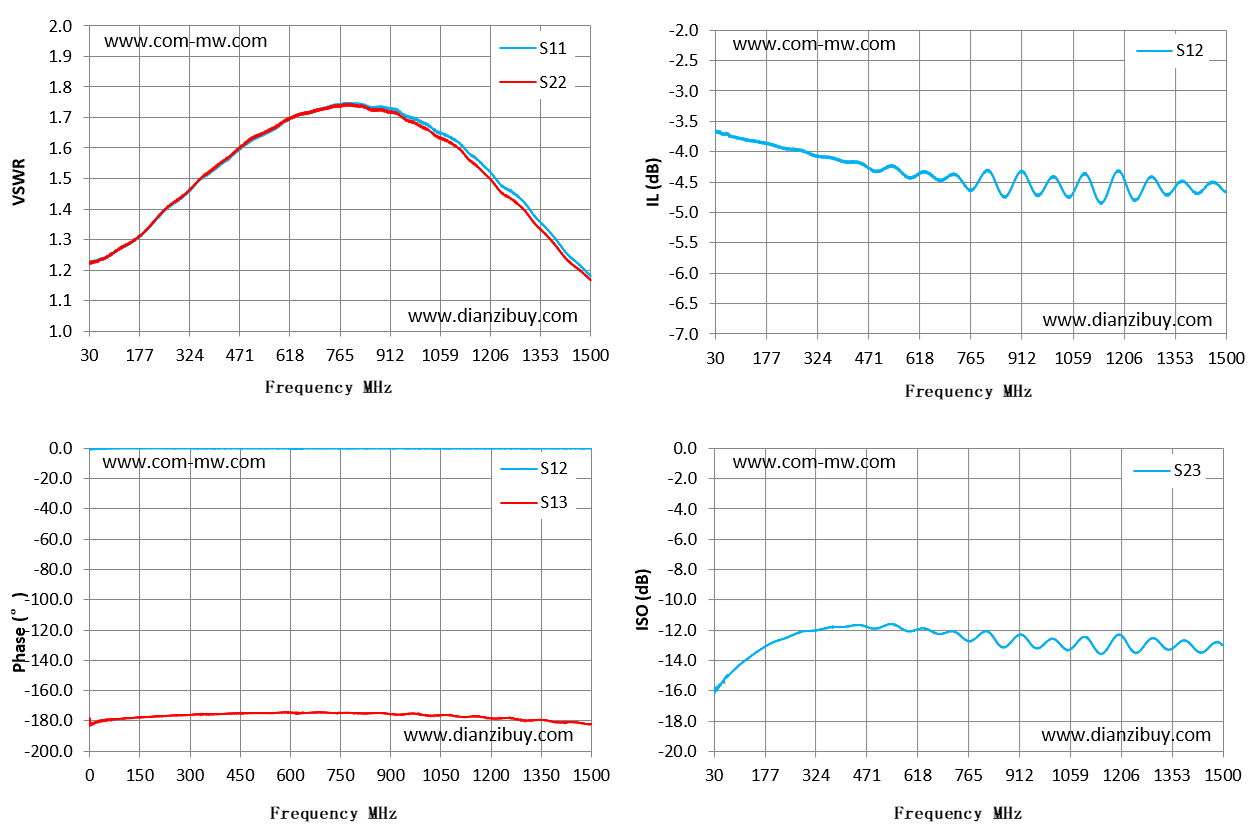

| Frequency MHz | S11 VSWR | S22 VSWR | S13 Phase (°) | S12 IL (dB) | S23 ISO dB |
|---|---|---|---|---|---|
| 30 | 1.22 | 1.22 | -180.21 | -3.67 | -16.08 |
| 135 | 1.28 | 1.28 | -177.96 | -3.83 | -13.76 |
| 240 | 1.38 | 1.39 | -176.61 | -3.96 | -12.51 |
| 345 | 1.48 | 1.49 | -175.69 | -4.09 | -11.93 |
| 450 | 1.58 | 1.58 | -175.08 | -4.2 | -11.68 |
| 555 | 1.65 | 1.66 | -174.78 | -4.28 | -11.69 |
| 660 | 1.71 | 1.71 | -174.67 | -4.43 | -12.12 |
| 765 | 1.74 | 1.74 | -174.71 | -4.64 | -12.74 |
| 870 | 1.73 | 1.72 | -174.81 | -4.73 | -13.15 |
| 975 | 1.7 | 1.69 | -175.34 | -4.63 | -13.11 |
| 1080 | 1.64 | 1.62 | -176.42 | -4.45 | -12.8 |
| 1185 | 1.54 | 1.52 | -177.9 | -4.33 | -12.56 |
| 1290 | 1.44 | 1.41 | -179.54 | -4.42 | -12.61 |
| 1395 | 1.3 | 1.28 | -180.98 | -4.59 | -12.73 |
| 1500 | 1.18 | 1.17 | -182.31 | -4.67 | -13.04 |
| 1 | 可以短时间浸泡清洗，请及时烘干。 |
| 2 | The product supports 220 ℃ reflow soldering. |
