Main specifications

Parameters	Min	Typical	Max	Units
Frequency	225	~	1000	MHz
IL			0.7	dB
Isolation	17	19		dB
VSWR			1.25
Amplitude balance			±0.7	dB
Phase balance			±5	°

Other parameters

Power	75W
Phase	90° Hybrid
Impedance	50Ω
Connector	SMD
Work Temp.	-40~+85℃ Design assurance
Storage Temp.	-55~+100℃ Design assurance
Quality Grade	Industrial grade
Other	Replace XC0600B-03P

Port Definition

IN	1	2	3	4
ISO	2	1	4	3
0°	4	3	2	1
-90°	3	4	1	2

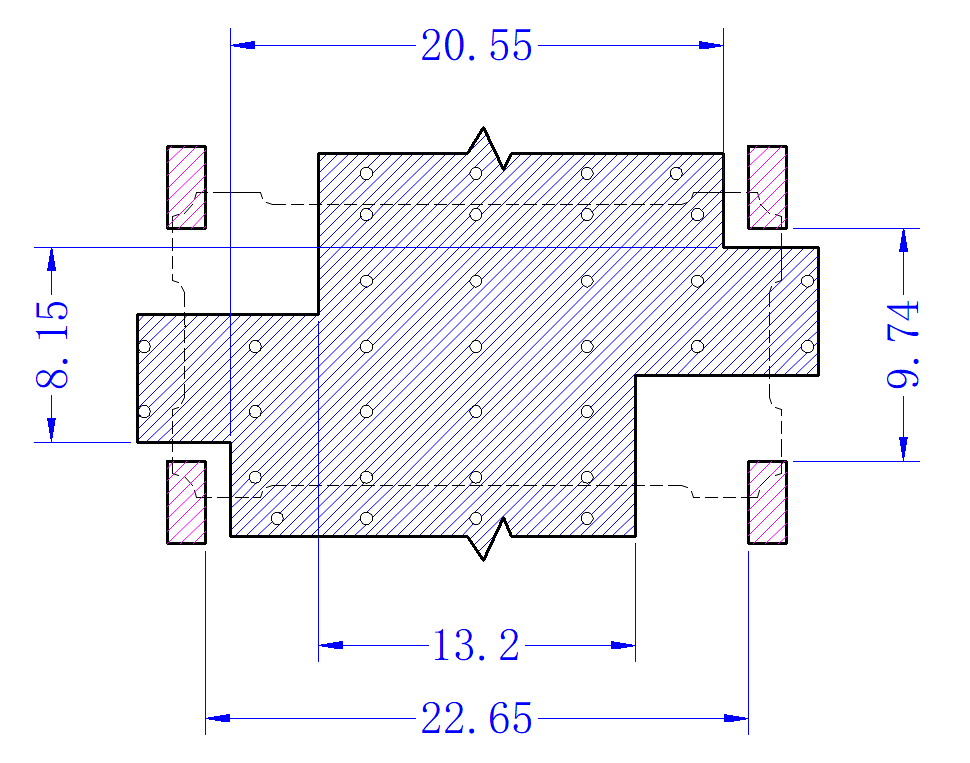

Suggested PCB Layout

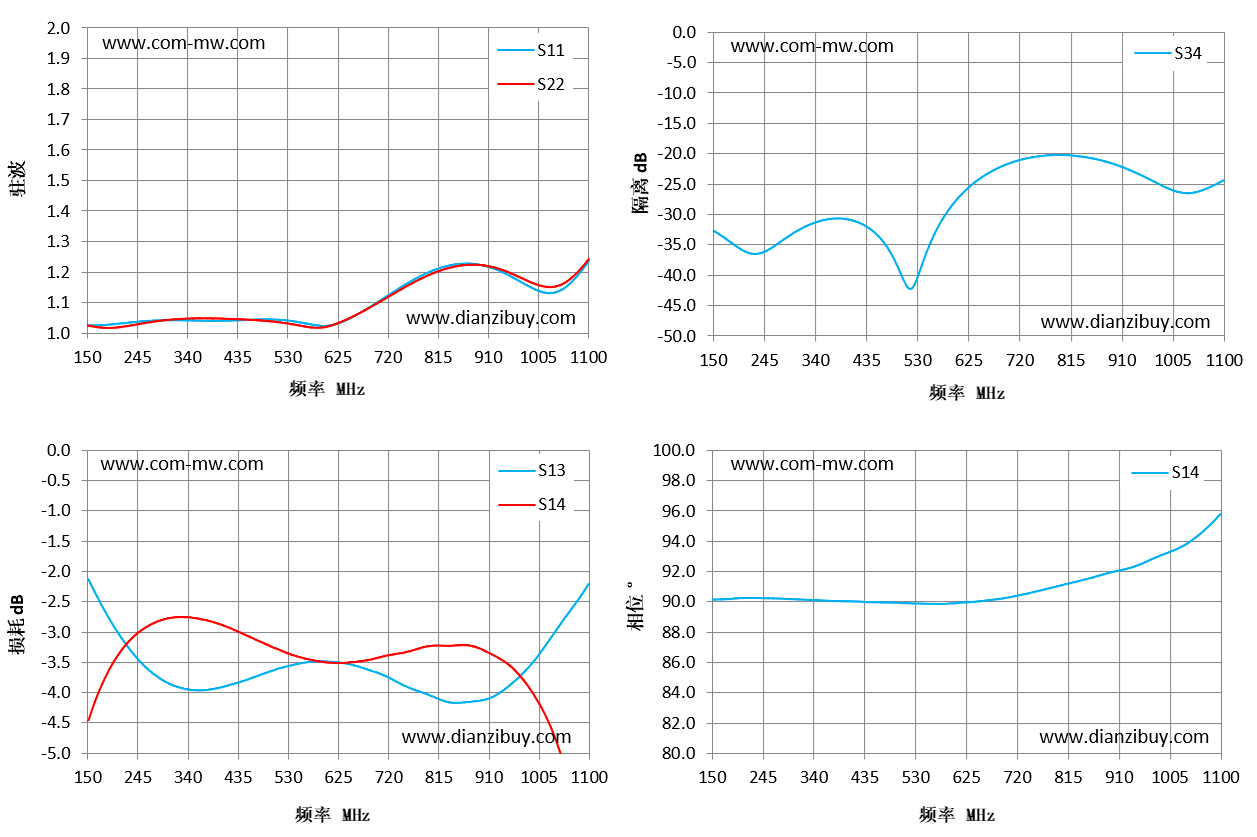

Typical test curve

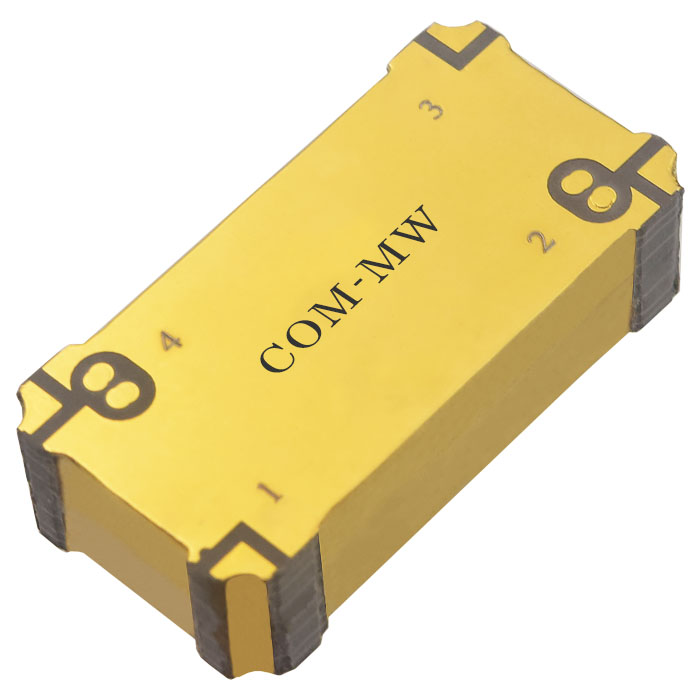

Reference picture

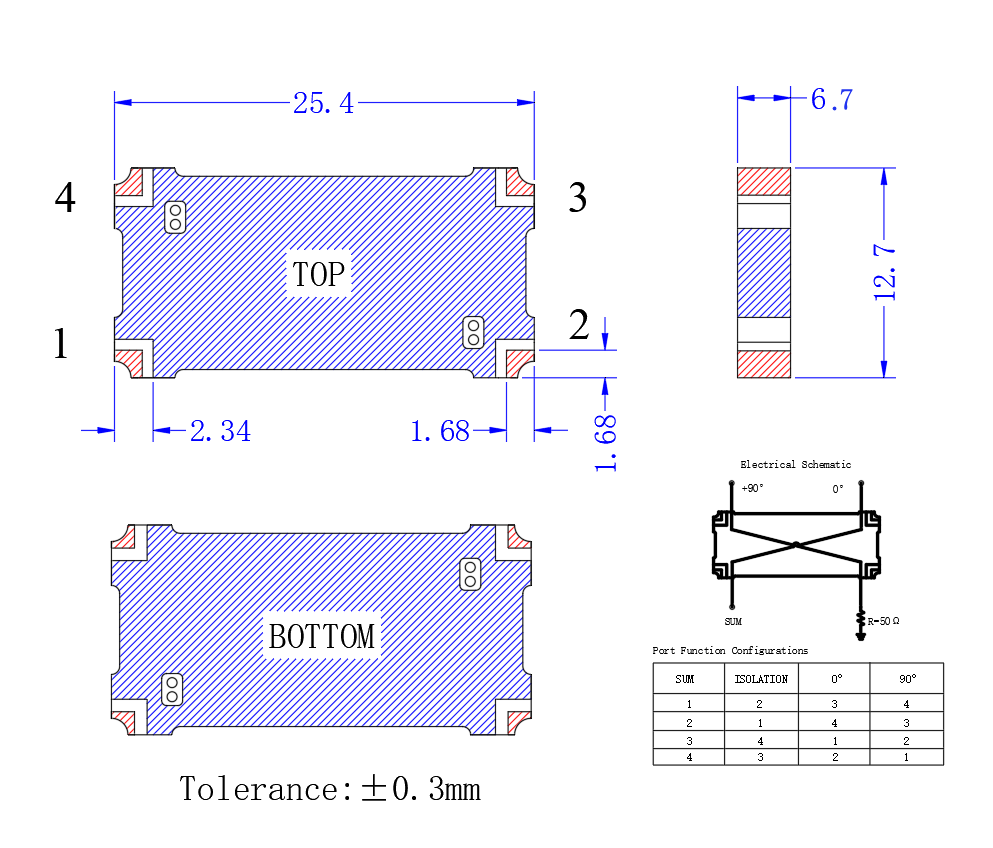

Configuration(mm)

Typical test data

Frequency(MHz)	S11 VSWR	S13 IL dB	S14 IL(dB)	S34 ISO dB	S14 Phase (°)
150	1.02	-2.13	-4.47	-32.67	90.13
218	1.03	-3.15	-3.25	-36.38	90.25
286	1.04	-3.76	-2.81	-33.89	90.19
354	1.04	-3.96	-2.77	-31	90.08
421	1.04	-3.87	-2.94	-31.35	90.01
489	1.04	-3.67	-3.2	-37.69	89.93
557	1.03	-3.51	-3.42	-34.21	89.86
625	1.03	-3.5	-3.51	-25.66	89.95
693	1.09	-3.65	-3.44	-21.93	90.21
761	1.17	-3.93	-3.31	-20.46	90.72
829	1.22	-4.14	-3.22	-20.49	91.31
896	1.22	-4.13	-3.28	-21.8	91.95
964	1.17	-3.77	-3.67	-24.37	92.69
1032	1.13	-3.05	-4.65	-26.54	93.73
1100	1.24	-2.21	-7.01	-24.45	95.81

Note

1	Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution.
2	The product supports 260 ℃ reflow soldering.
