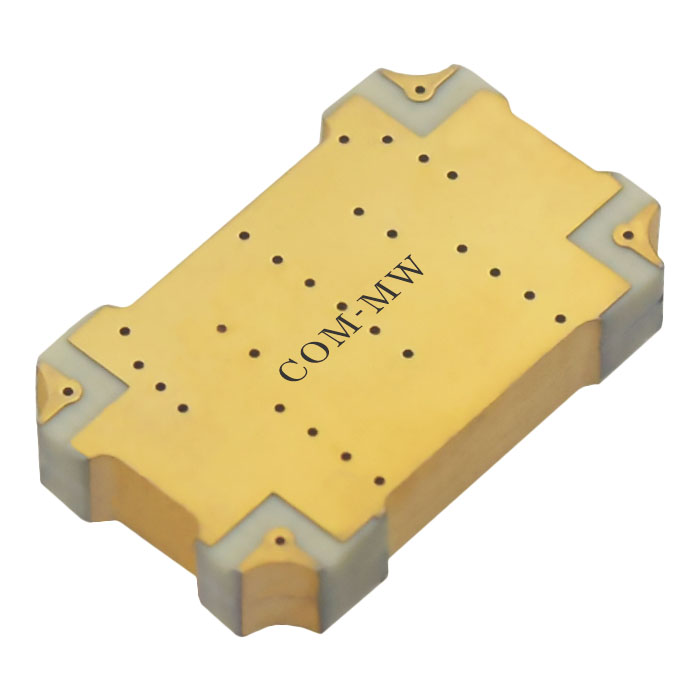

1000~2000MHz, 150W, Phase90°, SMD, Industrial grade, Replace IPP-7047
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

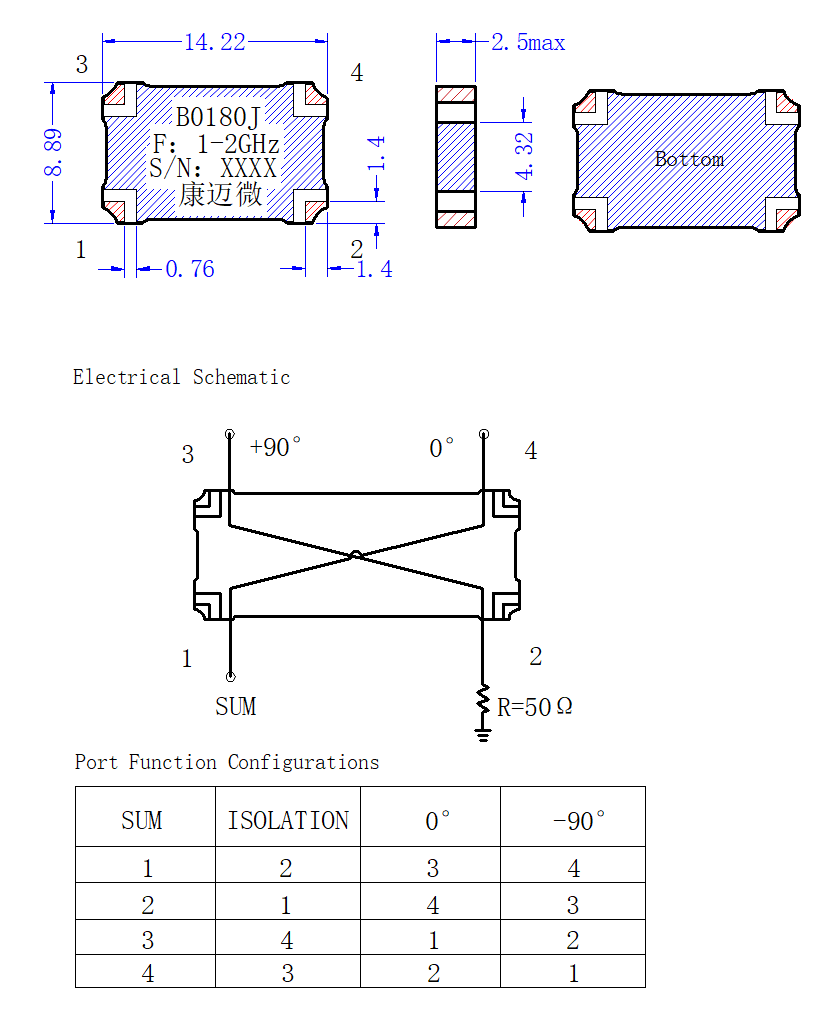

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1000 | ~ | 2000 | MHz |
| IL | 0.35 | dB | ||
| Isolation | 20 | dB | ||
| VSWR | 1.20 | 1.25 | ||
| Amplitude balance | ±0.8 | dB | ||
| Phase balance | ±5 | ° |
| Power | 150W |
| Phase | 90° |
| Impedance | 50Ω |
| Connector | SMD |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Replace IPP-7047 |
| Input port | 1 |
| Output port | 3（0°） |
| Output port | 4（-90°） |
| Isolated Port | 2 |
| GND | Bottom GND |

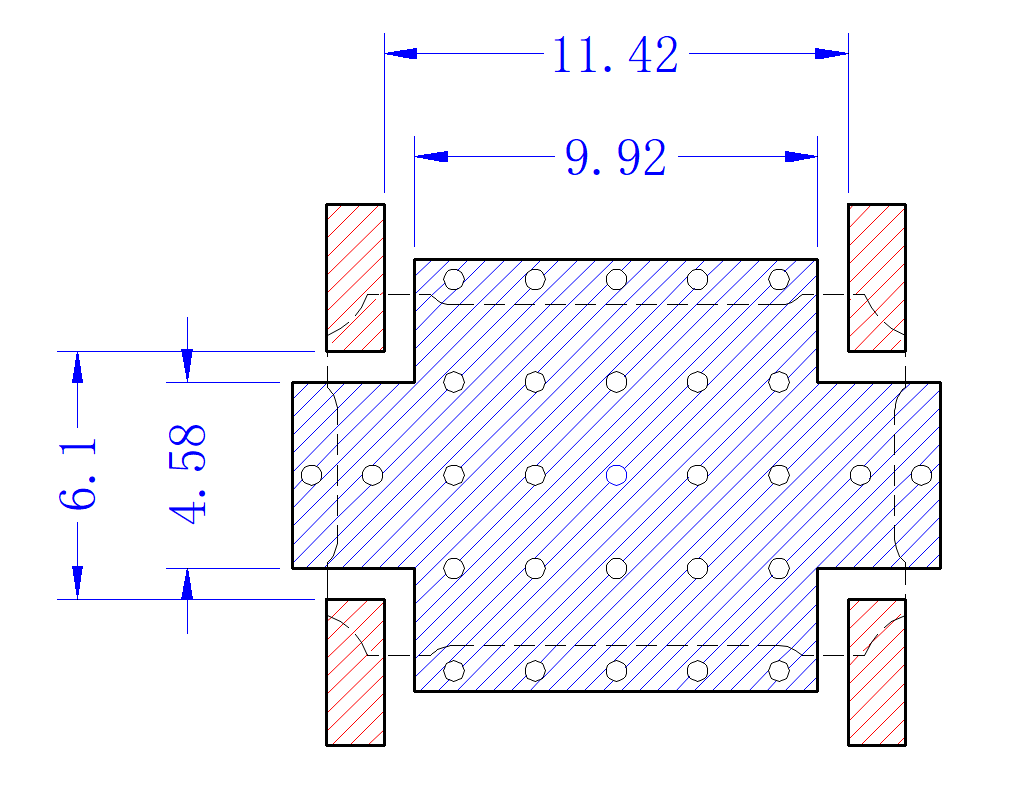

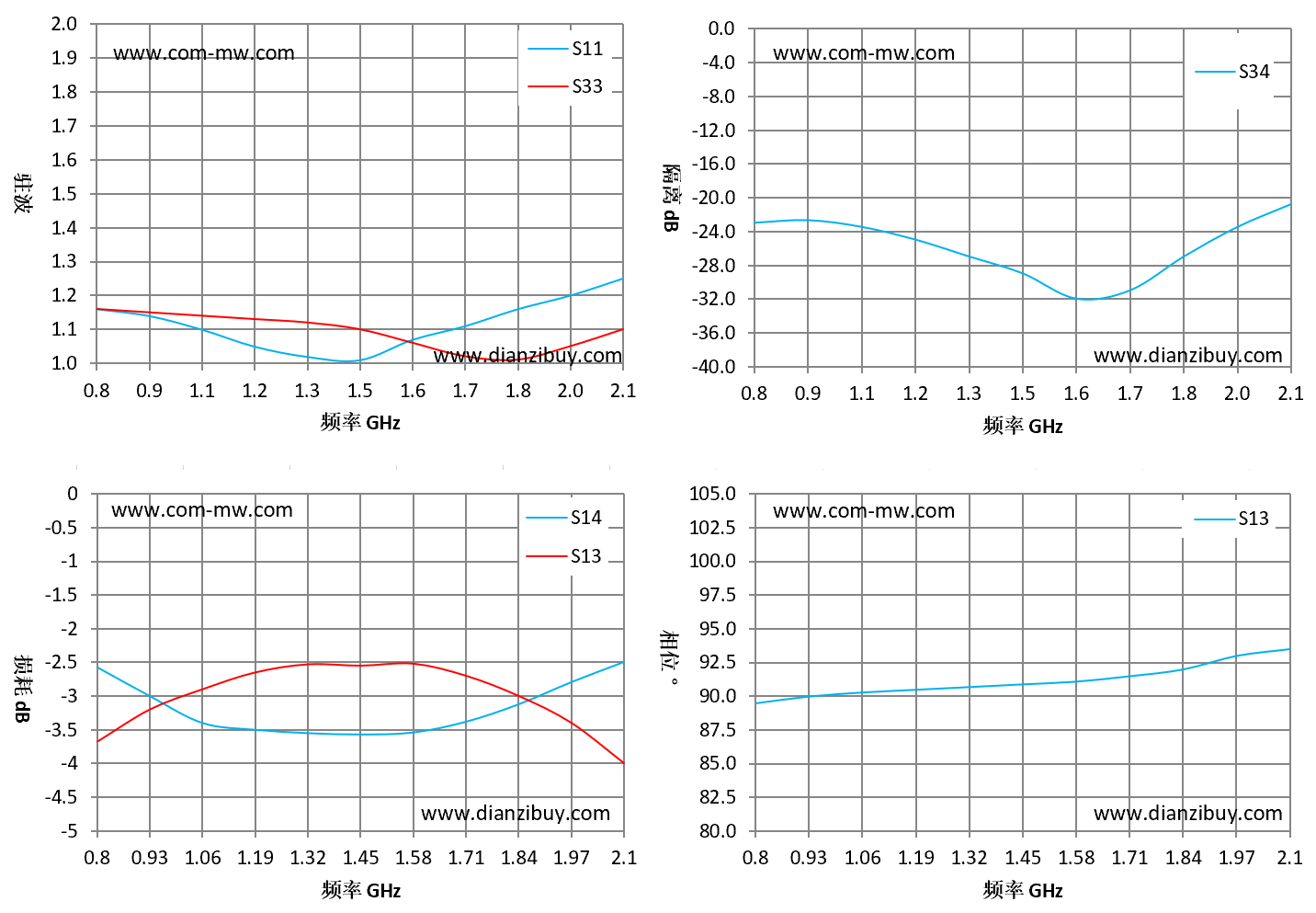

| Frequency (G) | S11 VSWR | S33 VSWR | S14 IL | S13 IL dB | S14 ISO | S13 Phase (°) |
|---|---|---|---|---|---|---|
| 0.8 | 1.16 | 1.16 | -2.57 | -3.68 | -23 | 89.5 |
| 0.93 | 1.14 | 1.15 | -3 | -3.2 | -22.7 | 90 |
| 1.06 | 1.1 | 1.14 | -3.4 | -2.9 | -23.5 | 90.3 |
| 1.19 | 1.05 | 1.13 | -3.5 | -2.65 | -25 | 90.5 |
| 1.32 | 1.02 | 1.12 | -3.55 | -2.53 | -27 | 90.7 |
| 1.45 | 1.01 | 1.1 | -3.57 | -2.55 | -29 | 90.9 |
| 1.58 | 1.07 | 1.06 | -3.54 | -2.52 | -32 | 91.1 |
| 1.71 | 1.11 | 1.02 | -3.38 | -2.7 | -31 | 91.5 |
| 1.84 | 1.16 | 1.01 | -3.02 | -3 | -27 | 92 |
| 1.97 | 1.2 | 1.05 | -2.79 | -3.4 | -23.5 | 93 |
| 2.1 | 1.25 | 1.1 | -2.49 | -4 | -20.8 | 93.5 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | The product supports 260 ℃ reflow soldering. |
