100~520MHz, 300W, 90°Hybrid, SMD, Replace IPP-7057
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 100 | ~ | 520 | MHz |
| IL | 0.6 | dB | ||
| Isolation | 16 | dB | ||
| VSWR | 1.3 | |||
| Amplitude balance | ±0.8 | dB | ||
| Phase balance | ±7 | ° |
| Power | 300W |
| Phase | 90° Hybrid |
| Impedance | 50Ω |
| Connector | SMD |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Replace IPP-7057 |
| IN | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| ISO | 2 | 1 | 4 | 3 |
| 0° | 3 | 4 | 1 | 2 |
| -90° | 4 | 3 | 2 | 1 |

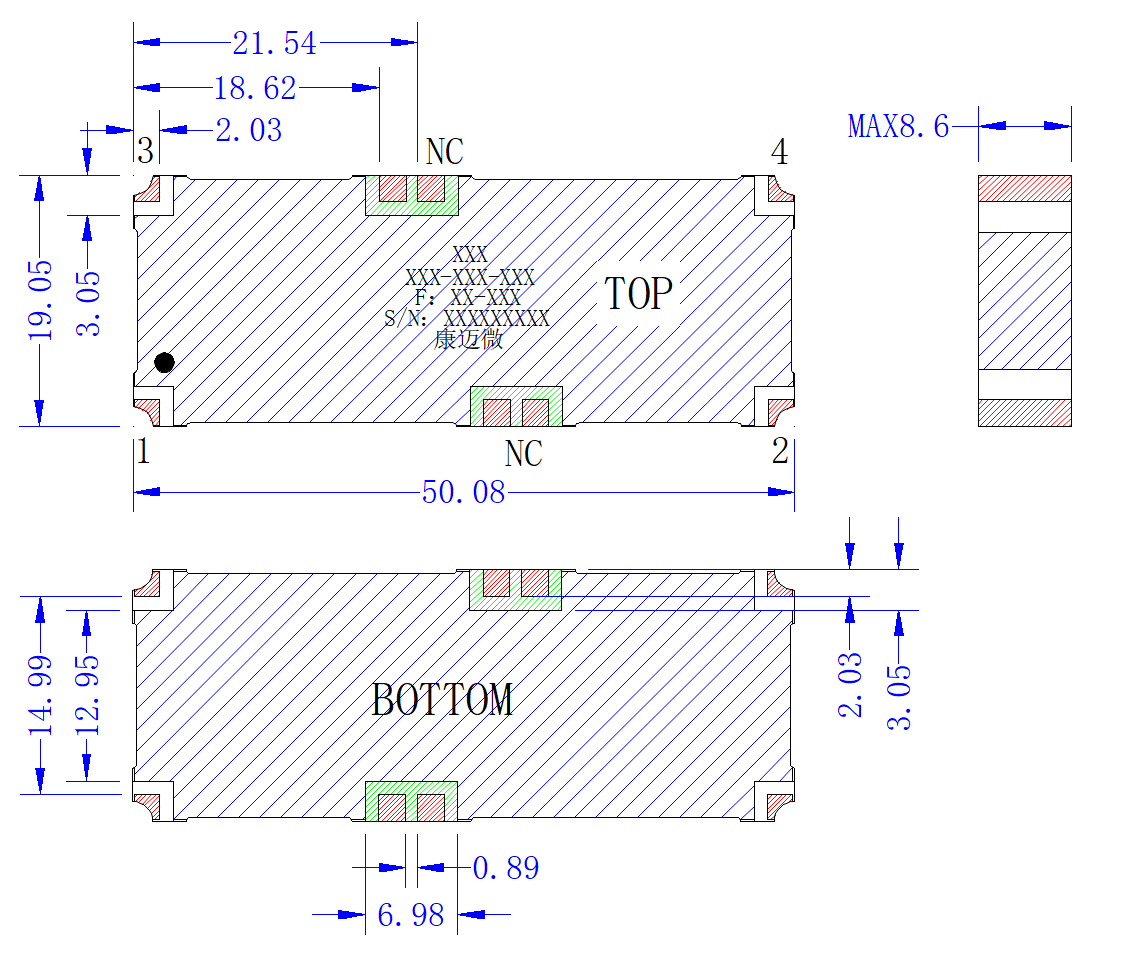

| 1 | NC端口不接地，绿色区域悬空。 |
| 2 | The product supports 260 ℃ reflow soldering. |
