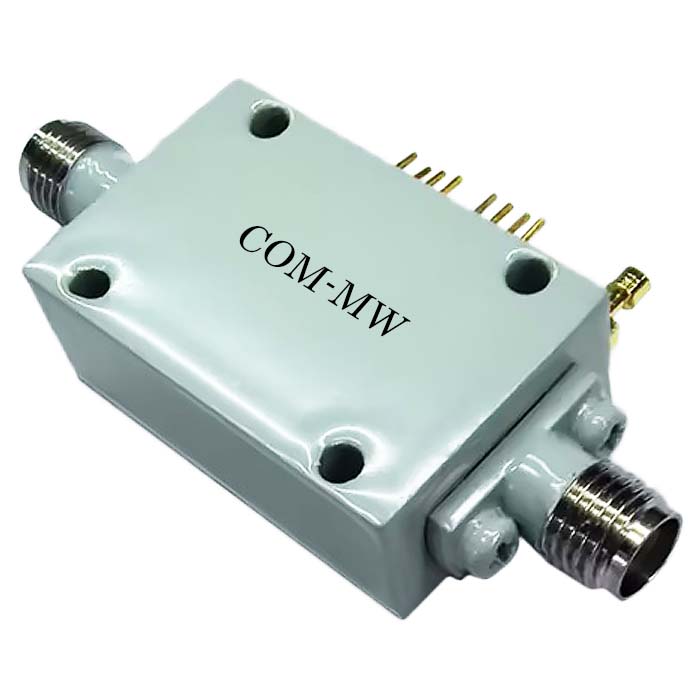

8~18GHz, Attenuation range0~30dB, step0.5dB, 衰减位数6Bit, Switching time150ns, 27dB, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
--
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 8 | ~ | 18 | GHz |
| Attenuation range | 0 | ~ | 30 | dB |
| IL | 4.5 | dB | ||
| VSWR | 2 | |||
| Attenuation accuracy | ±1 | dB | ||
| Attenuation flatness | ±1 | dB |
| step | 0.5dB |

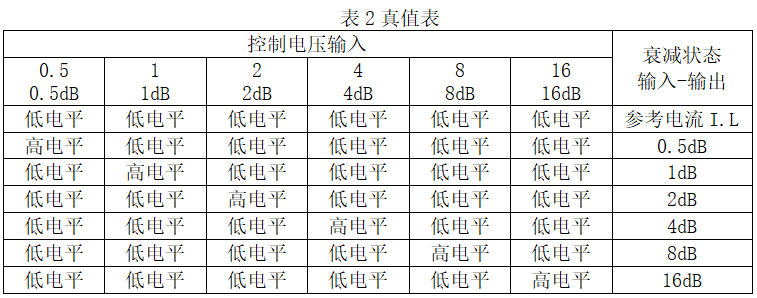

| 衰减位数 | 6 bits |
| Switching time | 150ns |
| Power Capacity | 27dB设计保证 |
| Impedance | 50Ω |
| Connector | SMA-F |
| Surface | Grey |
| Working voltage | ±5V |
| Working current | ±50mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
1. Clean the surface of the product, do not soak the product in cleaning solution for cleaning;
2. Pay attention to anti-static during installation or storage;
3. If the overall temperature is greater than 125 ℃, please consult with us before placing an order.
