690~6000MHz, 130W, 90°Hybrid, SMD, Substitutes model IPP-7148
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Surface mount, small size, high-power bridge
| Parameters | Min | Typical | Max | Units |
| Frequency | 690 | ~ | 6000 | MHz |
| IL | 0.8 | dB | ||
| Isolation | 15 | dB | ||
| VSWR | 1.5 | |||
| Amplitude balance | ±0.9 | ±1.0 | dB | |
| Phase balance | ±5 | ° |
| Power Capacity | 130W |
| Phase | 90° Hybrid |
| Impedance | 50Ω |
| Connector | SMD |
| Operation Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+105℃ Design assurance |
| Quality Grade | Industrial grade |
| Substitutes model | IPP-7148 |
| IN | 1 | 2 | 3 | 4 |
| ISO | 2 | 1 | 4 | 3 |
| 0° | 3 | 4 | 1 | 2 |
| -90° | 4 | 3 | 2 | 1 |

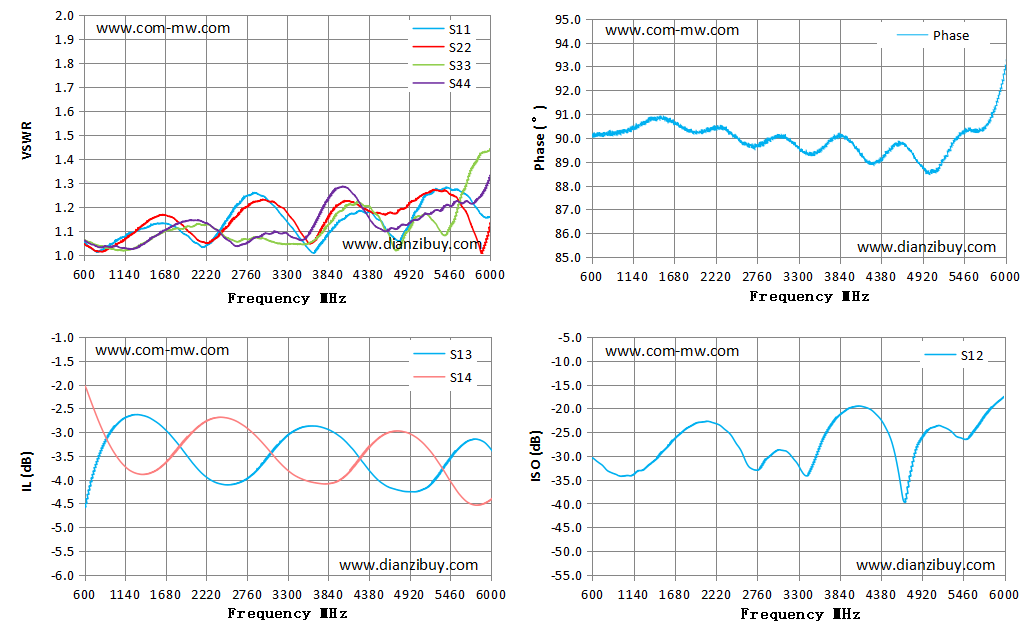

| Frequency MHz | S11 VSWR | S33 VSWR | S13 损耗 | S14 损耗 | Phase | S12隔离 |
| 600 | 1.05 | 1.06 | -4.52 | -2.07 | 90.18 | -30.42 |
| 690 | 1.03 | 1.05 | -3.94 | -2.44 | 90.28 | -31.51 |
| 872 | 1.03 | 1.03 | -3.12 | -3.17 | 90.32 | -33.69 |
| 1056 | 1.07 | 1.02 | -2.70 | -3.68 | 90.49 | -34.12 |
| 1968 | 1.08 | 1.12 | -3.41 | -3.23 | 90.48 | -23.00 |
| 2149 | 1.03 | 1.12 | -3.75 | -2.96 | 90.55 | -22.87 |
| 3518 | 1.05 | 1.04 | -2.79 | -4.19 | 90.19 | -30.60 |
| 4096 | 1.16 | 1.21 | -3.14 | -4.08 | 89.75 | -19.51 |
| 4853 | 1.09 | 1.08 | -3.95 | -3.36 | 89.68 | -27.94 |
| 5731 | 1.23 | 1.34 | -2.90 | -5.00 | 90.54 | -21.69 |
| 6000 | 1.15 | 1.44 | -3.14 | -4.74 | 92.96 | -17.38 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 260 ℃ reflow soldering. |
