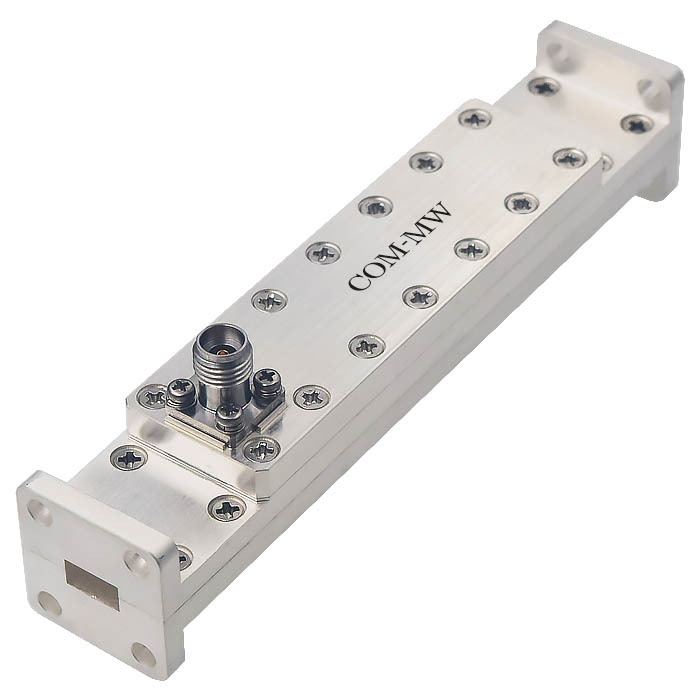

26.3~40GHz, Coupling10dB, BJ320, 100W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 26.3 | ~ | 40 | GHz |
| IL | 0.4 | dB | ||
| Coupling | 8.5 | 10 | 11.5 | dB |
| Directivity | 18 | dB | ||
| Main line VSWR | 1.1 | |||
| Coupled line VSWR | 1.4 |
| Coupling port | 2.92-K |
|---|---|
| Waveguide port | BJ320 |
| Surface | silver-plate |
| Power Capacity | 100W Design assurance |
| Shell Material | Aluminium |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+125℃ Design assurance |
| Other | 27.5G-30G耦合平坦度±0.4dB， 插损不包含分配损耗0.46dB |

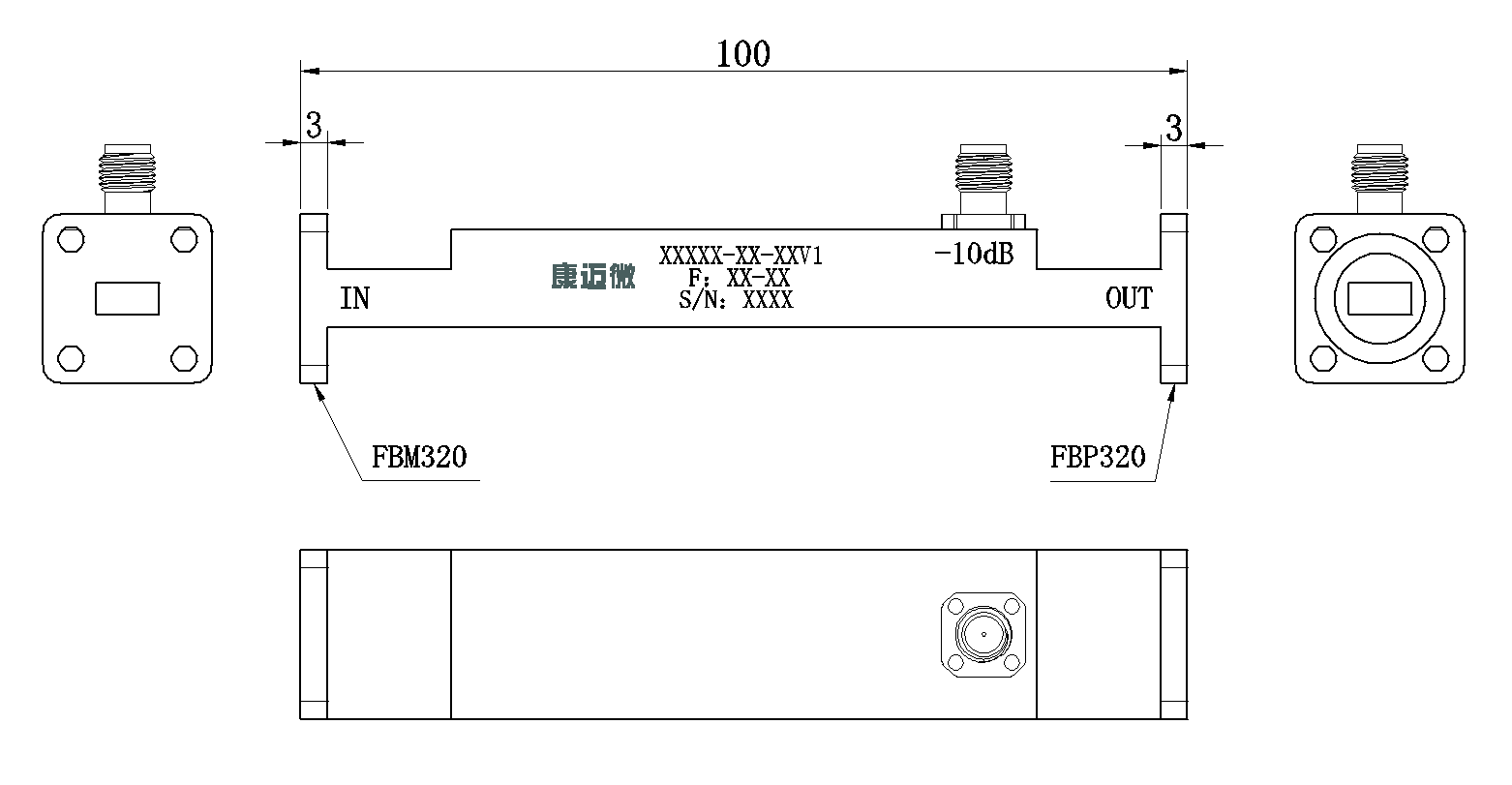

| Input port | IN | (FBM320） |
|---|---|---|
| Output port | OUT | (FBP320) |
| Coupling port | -10dB | （2.92mm-K） |

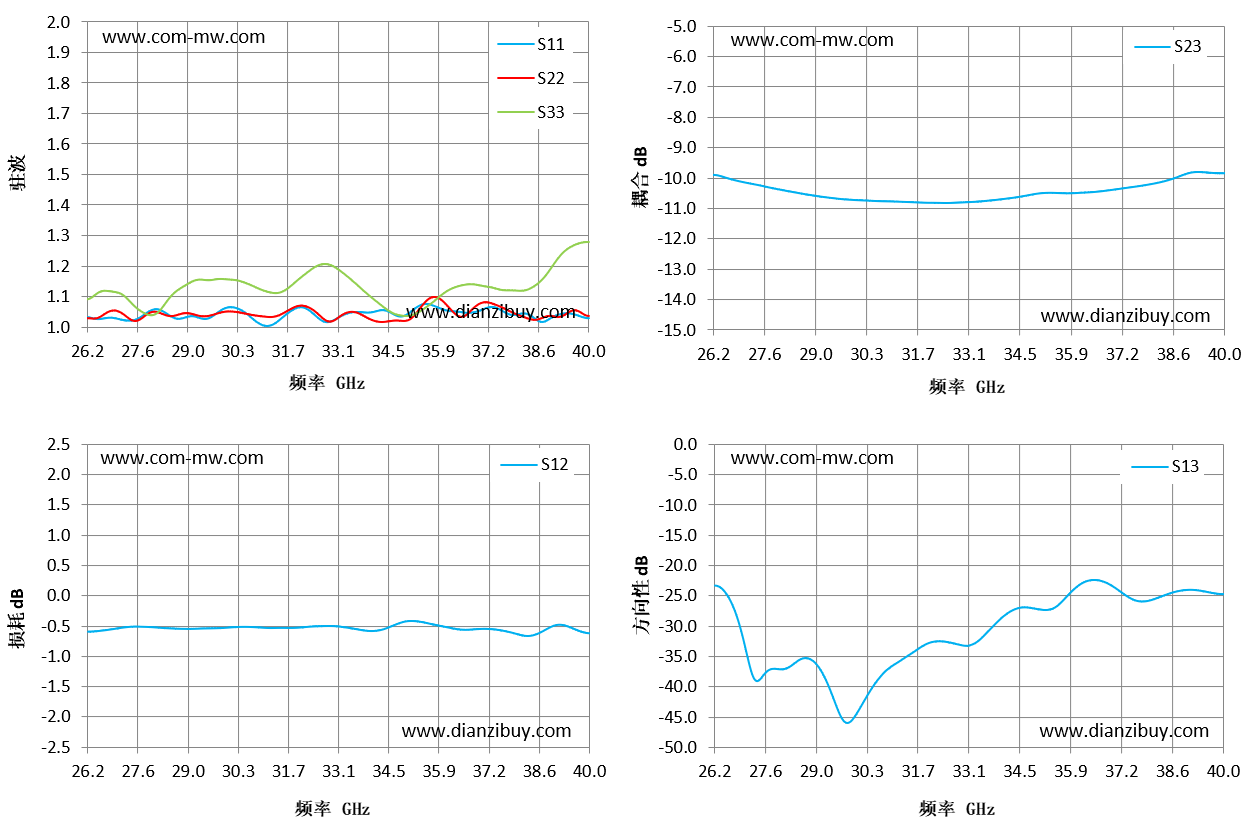

| Frequency(GHz) | S11 VSWR | S33 VSWR | S12 IL dB | S23 Coupling | S13 Directivity |
|---|---|---|---|---|---|
| 26.2 | 1.03 | 1.09 | -0.6 | -9.89 | -23.29 |
| 27.19 | 1.02 | 1.11 | -0.53 | -10.17 | -37.43 |
| 28.17 | 1.06 | 1.05 | -0.53 | -10.42 | -36.95 |
| 29.16 | 1.04 | 1.15 | -0.55 | -10.62 | -38.25 |
| 30.14 | 1.07 | 1.16 | -0.53 | -10.73 | -43.56 |
| 31.13 | 1 | 1.12 | -0.54 | -10.78 | -36.12 |
| 32.11 | 1.07 | 1.17 | -0.53 | -10.82 | -32.61 |
| 33.1 | 1.03 | 1.19 | -0.51 | -10.8 | -33.24 |
| 34.09 | 1.05 | 1.09 | -0.58 | -10.68 | -28.11 |
| 35.07 | 1.05 | 1.04 | -0.42 | -10.5 | -27.29 |
| 36.06 | 1.06 | 1.12 | -0.52 | -10.49 | -23.29 |
| 37.04 | 1.06 | 1.14 | -0.55 | -10.38 | -23.6 |
| 38.03 | 1.04 | 1.12 | -0.64 | -10.2 | -25.71 |
| 39.01 | 1.03 | 1.2 | -0.5 | -9.85 | -24.01 |
| 40 | 1.03 | 1.28 | -0.62 | -9.84 | -24.71 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
