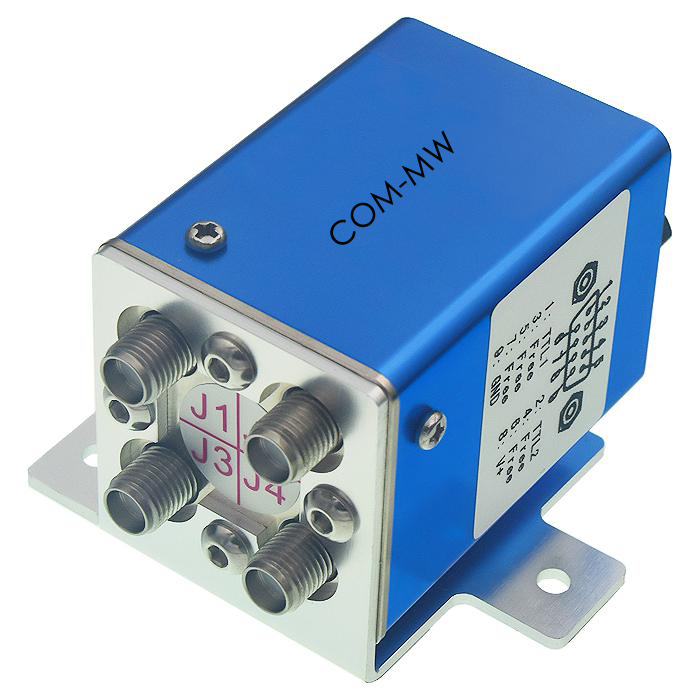

DC~18GHz, DPDT, Reflective, 20ms, SMA, 28V
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 18 | GHz |
| IL | 0.3@6GHz; 0.5@18GHz | dB | ||
| Isolation | 70@6GHz; 50@18GHz | dB | ||
| VSWR | 1.3@6GHz; 1.5@18GHz |

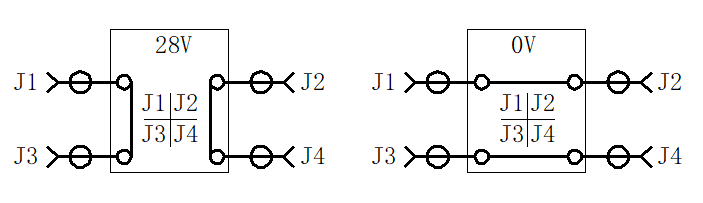

| Switch way | DPDT |
| Switching characteristic | Mechanical reflective switch |
| Switch time | 20ms |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power Capacity | 100W@3GHz; 70W@6GHz; 40W@18GHz |
| Working voltage | +28V |
| Working current | 180mA |
| Operation Temp. | -30~+70℃ Design assurance |
| Switching Lifetime | 1 million Cycles |

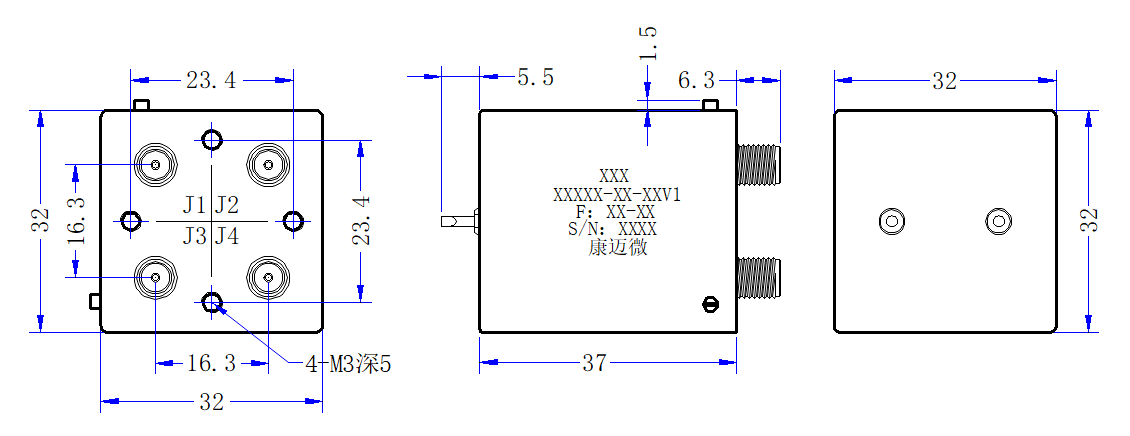

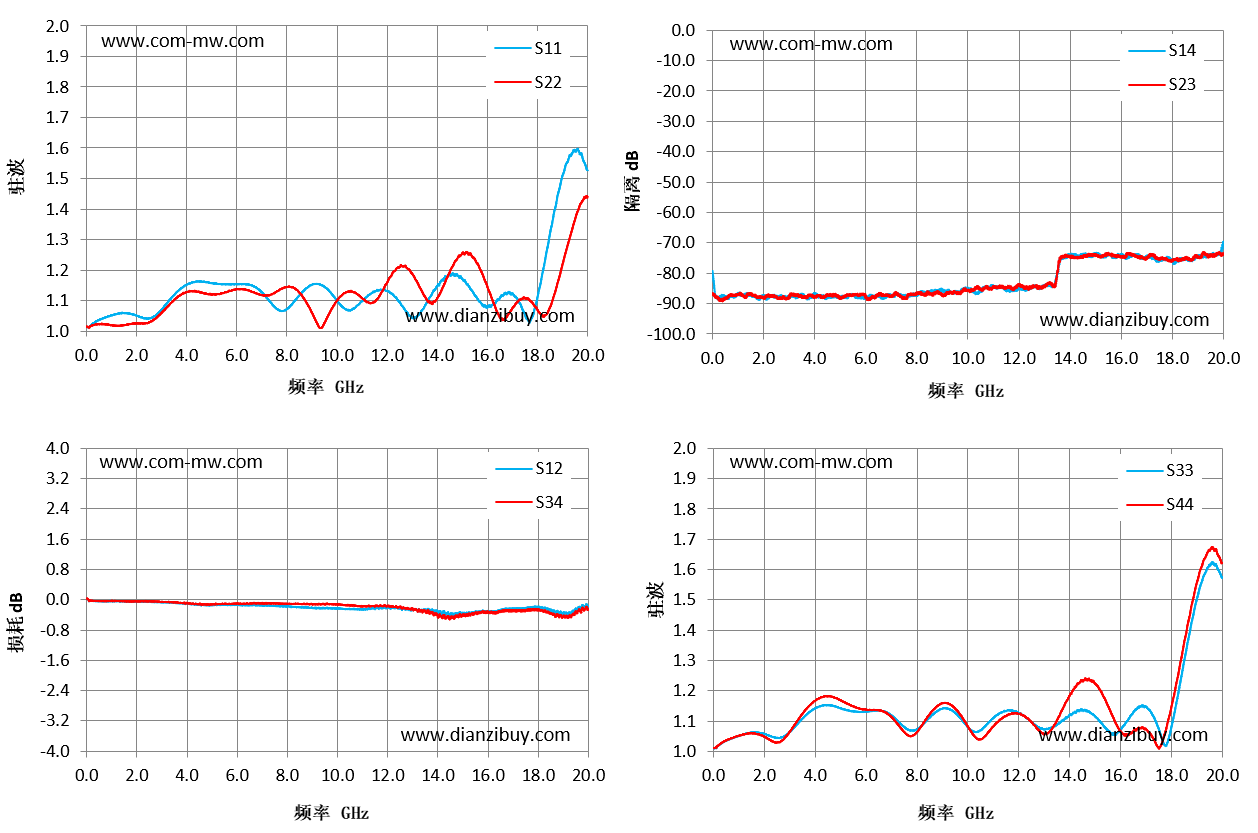

| Frequency(GHz) | S11 VSWR | S22 VSWR | S12 IL dB | S34 IL dB | S14 ISO dB |
|---|---|---|---|---|---|
| 0.01 | 1.01 | 1.02 | 0.03 | 0.04 | -79.19 |
| 1.43 | 1.06 | 1.02 | -0.05 | -0.04 | -87.09 |
| 2.86 | 1.06 | 1.05 | -0.07 | -0.05 | -88.01 |
| 4.29 | 1.16 | 1.13 | -0.13 | -0.12 | -87.68 |
| 5.71 | 1.15 | 1.13 | -0.14 | -0.11 | -88.22 |
| 7.14 | 1.11 | 1.12 | -0.15 | -0.1 | -87.15 |
| 8.57 | 1.12 | 1.12 | -0.2 | -0.11 | -85.71 |
| 10 | 1.1 | 1.1 | -0.24 | -0.13 | -85 |
| 11.43 | 1.13 | 1.09 | -0.23 | -0.17 | -85.19 |
| 12.86 | 1.05 | 1.2 | -0.26 | -0.24 | -84.72 |
| 14.29 | 1.17 | 1.16 | -0.37 | -0.47 | -74.34 |
| 15.71 | 1.09 | 1.2 | -0.32 | -0.34 | -74.84 |
| 17.14 | 1.11 | 1.09 | -0.25 | -0.29 | -74.64 |
| 18.57 | 1.35 | 1.09 | -0.3 | -0.38 | -75.5 |
| 20 | 1.53 | 1.44 | -0.17 | -0.23 | -69.56 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
