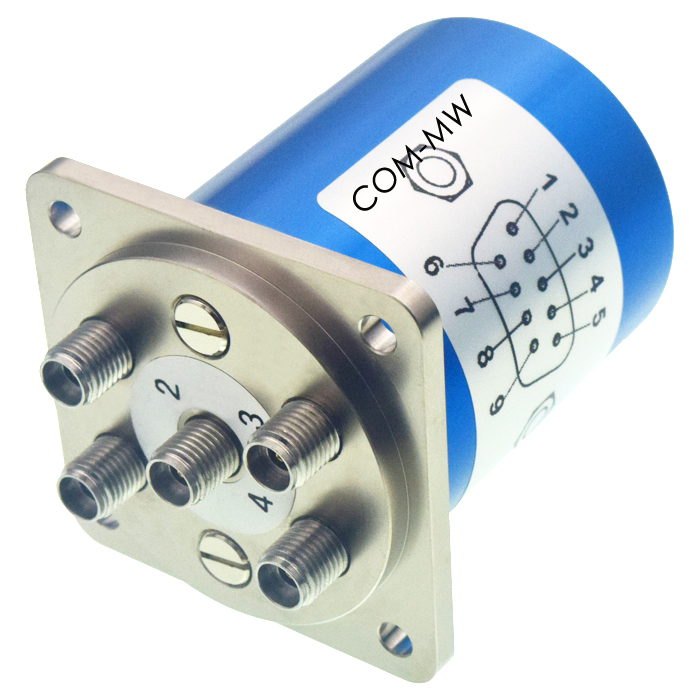

DC~26.5GHz, SP4TTTL Control, Reflective, 15ms, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 26.5 | GHz |
| IL | 0.7 | dB | ||
| Isolation | 70 | dB | ||
| VSWR | 1.4 |
| Switch way | SP4T TTL Control |
|---|---|
| Switching characteristic | Mechanical reflective switch |
| Switch time | 15ms |

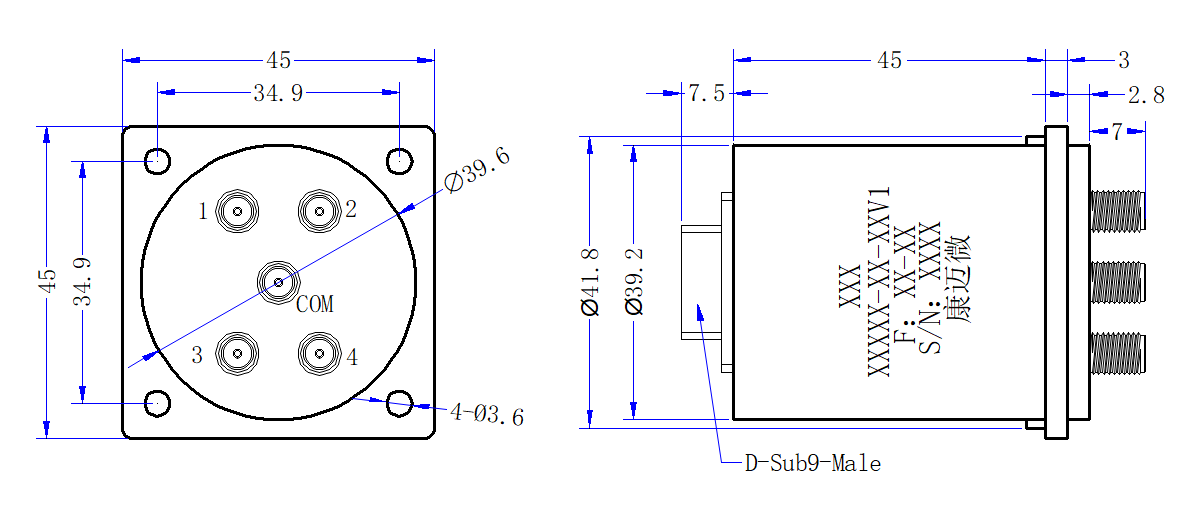

| Connector | 2.92-K |
| Impedance | 50Ω |
| Power Capacity | 30W@6GHz；15W@18GHz；10W@26.5GHz |
| Working voltage | +24V |
| Working current | 160mA |
| Operation Temp. | -40~+85℃ Design assurance |

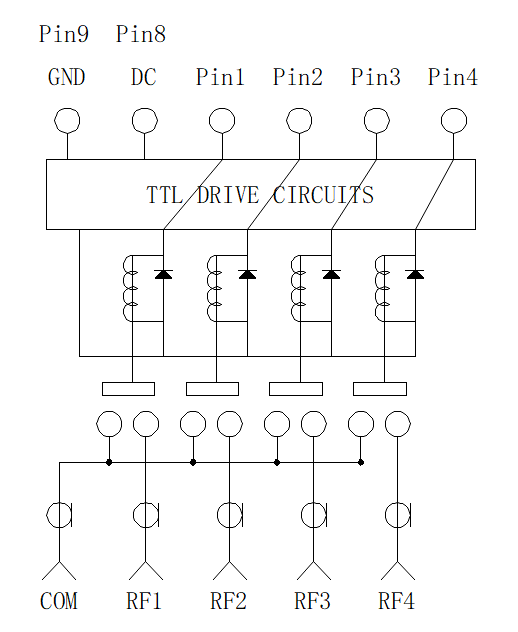

| Other | Control port: D-Sub9 Male |
| Common port | COM |
|---|---|
| Branching port | 1，2，3，4 |

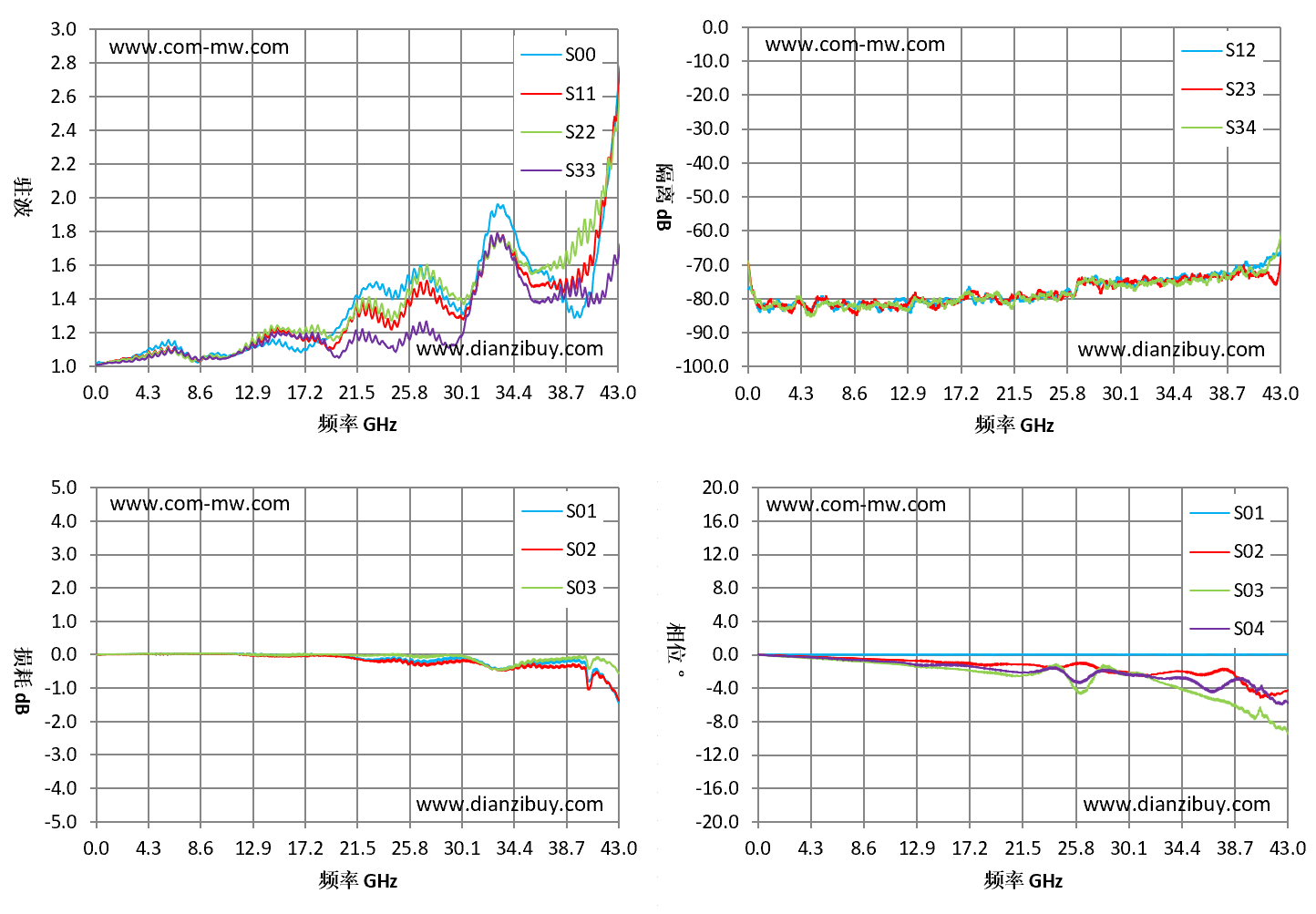

| Frequency (G) | S00 VSWR | S11 VSWR | S02 IL | S12 ISO | S03 phase |
|---|---|---|---|---|---|
| 0.1 | 1.02 | 1.01 | -0.01 | -77.13 | -0.01 |
| 6 | 1.15 | 1.1 | -0.03 | -79.71 | -0.56 |
| 9 | 1.05 | 1.04 | -0.05 | -80.71 | -0.89 |
| 15 | 1.15 | 1.22 | -0.13 | -82.12 | -1.59 |
| 18 | 1.13 | 1.15 | -0.23 | -77.78 | -2.07 |
| 25 | 1.43 | 1.29 | -0.36 | -79.2 | -2.41 |
| 28 | 1.46 | 1.39 | -0.35 | -74.05 | -1.2 |
| 31 | 1.47 | 1.43 | -0.42 | -76 | -2.36 |
| 37 | 1.55 | 1.48 | -0.45 | -73.39 | -5.36 |
| 40 | 1.31 | 1.51 | -0.55 | -70.32 | -7.24 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
| 3 | D-Sub9 control pin definition, see product label for details. |
