Capacitance value4.7PF, Withstand voltage100V, Ceramic materials
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Spot supply, clearly priced.
Adopting MM structure, the product has small parasitic parameters and a frequency of up to 100GHz.
Surface pure gold electrode, suitable for micro assembly processes such as gold wire and gold ribbon.
Suitable for Au/Sn, Au/Si, Au/Ge eutectic soldering, as well as Sn/Pb and conductive adhesive bonding.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Capacitance value | 4.7 | PF | ||
| Capacitance error | ±0.5 | PF | ||
| Withstand voltage | 100 | V | ||
| Operation Temp. | -55 | ~ | +125 | ℃ |
| IL | 0.25 | dB@18GHz | ||
| IL | 0.5 | dB@40GHz |
| Quality Grade | Industrial grade |
| ROHS | Compliant Available |
| Other | Ceramic materials |

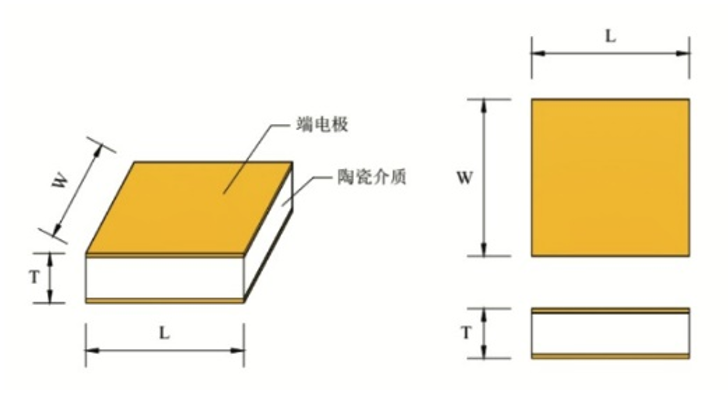

| Size Code | size | Units |
|---|---|---|
| L | 0.254±0.076 | mm |
| W | 0.254±0.076 | mm |
| T | 0.178±0.05 | mm |
